SBT66 Pilot Inverted Bucket Steam Trap

Description

Description

Working Principle

Based on the differential density ofsteam and liquid.
The main valve is guided to open through the pilot valve, and the capacity is large.

Features

The valve body and valve cover are made of cast steel.
The internal parts are all made of stainless steel, and the wear allowance has been fully considered in the design of the movable parts, which improves the service life of the steam trap.
Install anti-water shock device, so that the fluid entering the valve body does not produce water hammer phenomenon.
Built-in check valve, suitable for superheated steam environment.
Built-in filter allows the steam trap to work in a clean environment.

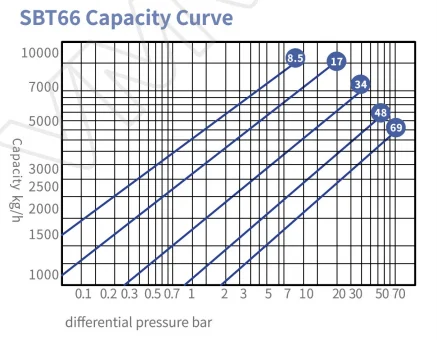

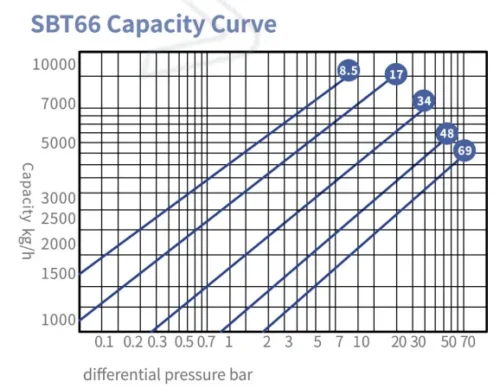

Select different capacity curves according to the pressure.
Back pressure rating>80%

Technical Standard

ISO 6553: Automatic steam traps – Marking
ISO 6554: Automatic steam traps -Face-to-face dimensions
ISO 6948: Automatic steam traps -Production and performance
characteristic tests

Technical Parameter

Nominal pressure	PN100

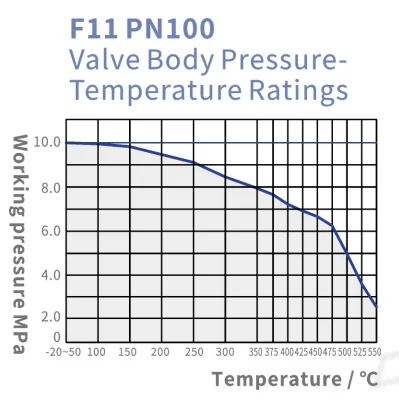

Max. allowable pressure (Shell)	9.47MPa/200°C
Max. allowable temperature (Shell)	450°C/6.67MPa
Factory steam action test	>3 times/1.6MPa
Max. operating pressure	6.9MPa
Max. operating temperature	450°C
Factory cold test pressure	15MPa
Air test	2.0MPa

Bonnet:F11
Body: F11
Disc:440C+304
Other trims:304
Seat:420

unit (mm)

Connection	Pressure	DN(IN)	L	L2	H	W	W1	W2	KG
F	PN63/100CL300/600	25(1″)	60	60	422	300	200	55	70.7
		32(11/4″)	60	60	422	300	200	55	72.1
		40(11/2″)	60	60	422	300	200	55	73.5
		50(2″)	60	60	422	300	200	55	78.2
		65(21/2″)	80	80	422	300	200	55	81.1
		80(3″)	80	80	422	300	200	55	85.5
		100(4″)	80	80	422	300	200	55	92.2
