Description

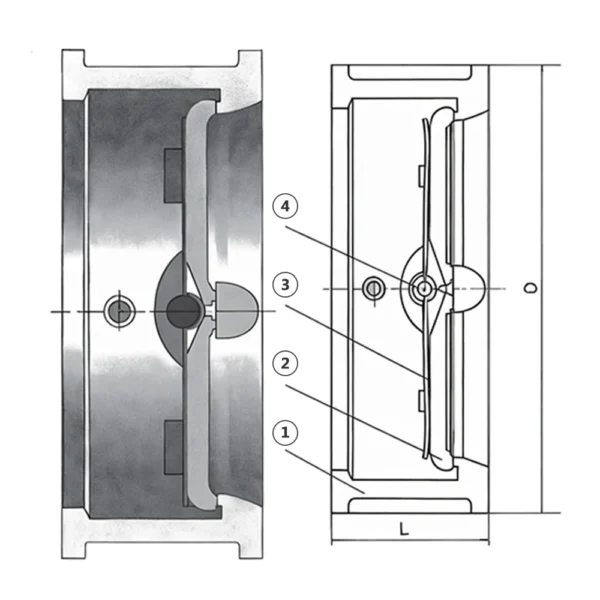

| Main Parts | Material |
| 1 Body | WCB、CF8、CF8M、CF3、CF3M |
| 2 Disc | WCB、CF8、CF8M、CF3、CF3M |
| 3 Spring | INCONEL、17-7PH |
| 4 Shaft | F6a、304、316、304L、316L、17-7PH |
Main Dimensions and Weight
CLASS 150~1500
| Size | Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 | ||||||||||
| L | D | WT | L | D | WT | L | D | WT | L | D | WT | L | D | WT | |
| inch | mm | mm | Kg | mm | mm | Kg | mm | mm | Kg | mm | mm | Kg | mm | mm | Kg |
| 2 | 60 | 103 | 2 | 60 | 110 | 3 | 60 | 110 | 4 | 70 | 140 | 8 | 70 | 140 | 8 |
| 2-1/2 | 67 | 122 | 3 | 67 | 128 | 4 | 67 | 128 | 5 | 83 | 162 | 11 | 83 | 162 | 11 |
| 3 | 73 | 135 | 4 | 73 | 147 | 6 | 73 | 147 | 8 | 83 | 165 | 14 | 83 | 172 | 19 |
| 4 | 73 | 173 | 6 | 73 | 179 | 8 | 79 | 191 | 11 | 102 | 204 | 20 | 102 | 207 | 26 |
| 5 | 86 | 195 | 8 | 86 | 214 | 15 | 105 | 239 | 20 | 110 | 245 | 30 | 110 | 252 | 51 |
| 6 | 98 | 220 | 13 | 98 | 249 | 18 | 136 | 264 | 26 | 159 | 286 | 42 | 159 | 280 | 68 |
| 8 | 127 | 277 | 25 | 127 | 305 | 31 | 165 | 318 | 55 | 206 | 356 | 84 | 206 | 350 | 130 |
| 10 | 146 | 337 | 39 | 146 | 359 | 51 | 213 | 398 | 95 | 241 | 432 | 145 | 248 | 433 | 210 |
| 12 | 181 | 407 | 54 | 181 | 420 | 77 | 229 | 455 | 140 | 292 | 495 | 220 | 305 | 518 | 384 |
| 14 | 184 | 448 | 80 | 222 | 483 | 117 | 273 | 490 | 223 | 356 | 518 | 350 | 356 | 576 | 550 |
| 16 | 191 | 512 | 117 | 232 | 537 | 190 | 305 | 562 | 360 | 384 | 572 | 470 | 384 | 639 | 635 |
| 18 | 203 | 547 | 138 | 264 | 594 | 200 | 362 | 610 | 395 | 451 | 635 | 605 | |||
| 20 | 219 | 604 | 163 | 292 | 652 | 265 | 368 | 680 | 518 | 451 | 695 | 820 | |||
| 24 | 222 | 715 | 331 | 318 | 772 | 410 | 438 | 786 | 836 | 495 | 835 | 1050 | |||
| 28 | 305 | 773 | 380 | ||||||||||||
| 30 | 305 | 824 | 423 | 368 | 882 | 660 | – | – | – | ||||||
| 32 | 305 | 878 | 560 | ||||||||||||
