IN40M Mixer

Mixers are used where steam is used to heat water or other fluids. When working, the highspeed jet of steam sucks and mixes the liquid from the annular hole, and then sprays the heated medium into the water tank. The steam and the medium are fully mixed to avoid the temperature stratification difference.

Description

Mixers are used where steam is used to heat water or other fluids. When working, the highspeed jet of steam sucks and mixes the liquid from the annular hole, and then sprays the heated medium into the water tank. The steam and the medium are fully mixed to avoid the temperature stratification difference.
IN40M has external thread and butt welding type. When installing with higher flow rate, two or more injectors can be

Structural Features
  • All stainless steel 304 material
  • No moving parts, compact design
  • Noise and vibration can be minimized
Installation Notes
  • The mixer is installed low in the tank, preferably on the centerline, and injects steam horizontally.
  • The piping can be inside or outside the tank.
  • Steam piping must be well secured to protection against vibration and stress on tank walls.
  • It is recommended to use a suitable adhesive on threaded joints.



Technical Standard
  • GB/T12250-2005 Steam Trap Terminology Marking Structure Length
  • GB/T22654-2008 Technical Conditions for Steam Traps
  • GB/T12251-2005 Test Method for Steam Traps
  • ISO 6948 Automatic steam traps

Production and performance characteristic tests

Technical Parameter
Model Connection Method Nominal Pressure PN Working Pressure Range MPa Temperature ℃ / Pressure MPa Maximum Heating
Temperature℃/
IN40M Threaded 25 0.5-1.7 207/1.7 90
Butt welding 25 0.5-1.7 207/1.7 90



System Pressure bar Flow Kg/h System Pressure bar Flow Kg/h
0.5 222 9 1820
1 400 10 1950
2 580 11 2250
3 805 12 2370
4 970 13 2595
5 1125 14 2710
6 1295 15 2815
7 1445 16 2065
8 1620 17 3200

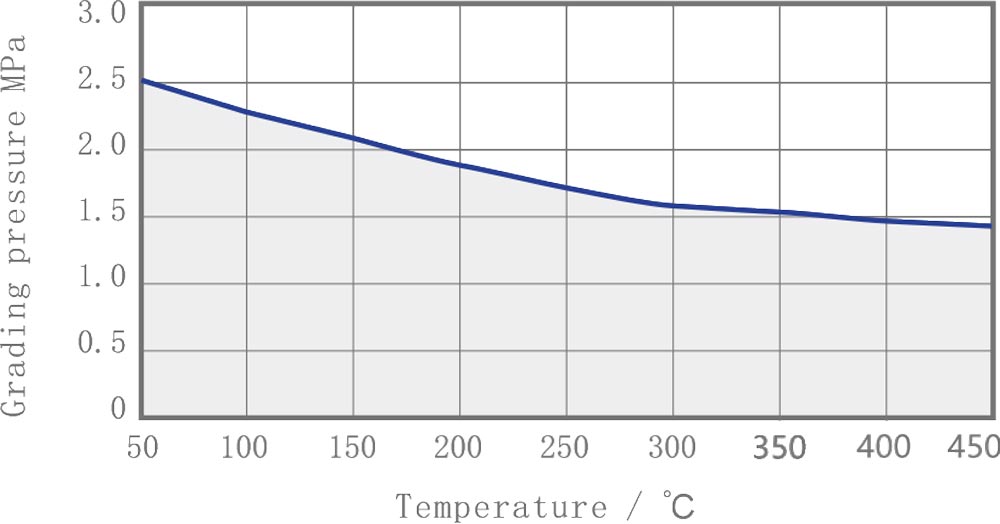

CF8 Material PN25 Valve Body Pressure Temperature Ratings

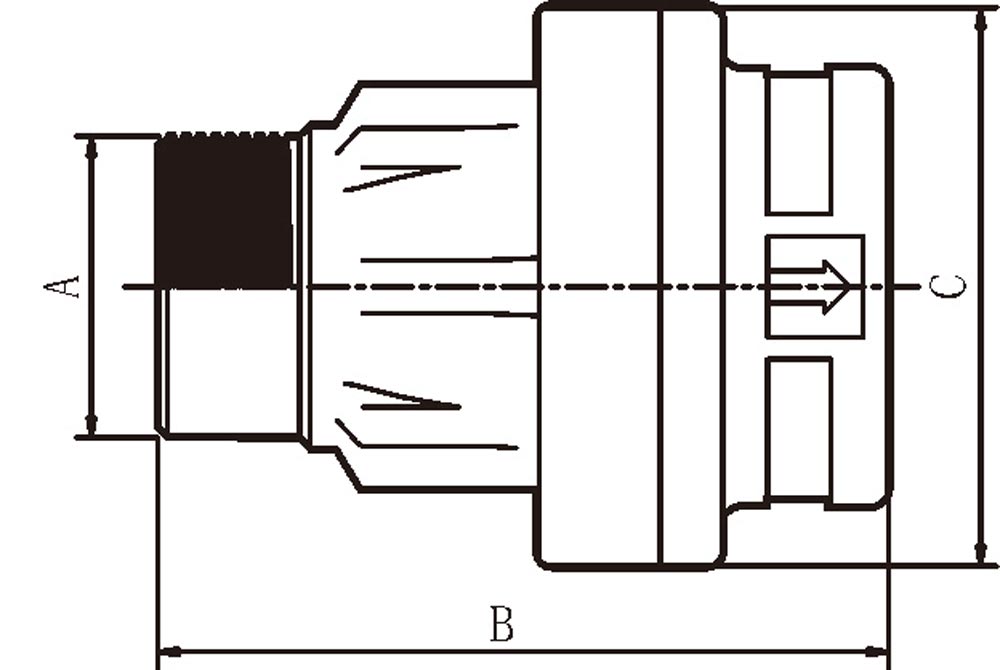

Mixer IM40M Structure Diagram

unit (mm)

Model Nominal Size A B C Weight
IN40M DN40 ZG1 1/2″ 118 92 1.6 kg
IN40M DN40 BWФ48X5 118 92 1.6 kg
