Forged Steel Swing Lift Screw Socket Weld Check Valve 3

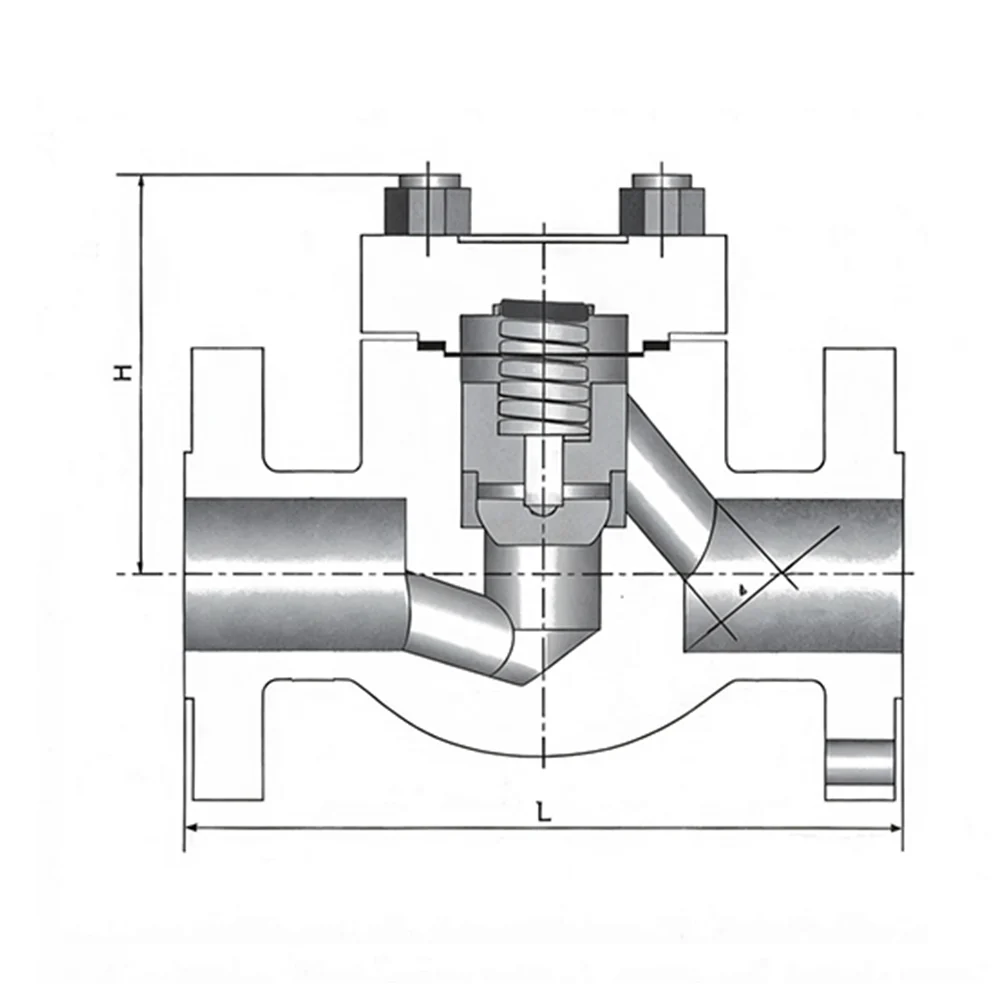

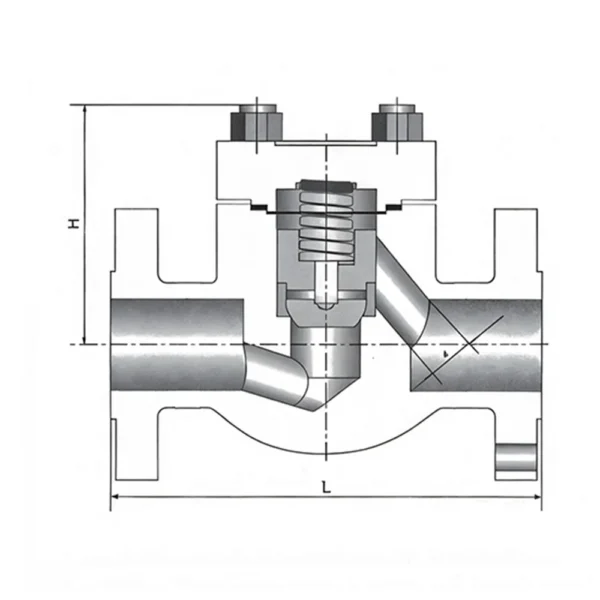

Forged Steel Swing/Lift/Flange Check Valve

Description

Description

CLASS 150~600

Size		Pressure LB	L(mm)	H(mm)				Weight(Kg)
Size				Lift Type		Swing Type		Lift Type		Swing Type
inch	mm			Reduced Bore	Full Bore	Reduced Bore	Full Bore	Reduced Bore	Full Bore	Reduced Bore	Full Bore
1/2	15	150	108	61	61	61	61	2.6	3.4	2.5	3.3
		300	152					2.7	3.7	2.6	3.6
		600	165					3.0	4	2.9	4.3
3/4	20	150	117	61	78	61	78	3.4	4.4	3.3	4.8
		300	178					3.7	4.7	3.6	5.1
		600	190					4.0	5.8	4.3	6.2
1	25	150	127	78	84	78	84	4.4	8.2	4.8	7
		300	203					4.7	8.8	5.1	7.4
		600	216					5.8	9.5	6.2	7.7
1-1/4	32	150	140	84	103	84	101	8.2	8.9	7	7.5
		300	216					8.8	9.6	7.4	7.9
		600	229					9.5	10.1	7.7	9.3
1-1/2	40	150	165	108	118	101	110	8.9	12	7.5	11.3
		300	229					9.6	13.7	7.9	11.7
		600	241					10.1	15.6	9.3	13.2
2	50	150	203	118	132	120	113	12.6	14.3	11.3	13.6
		300	267					13.7	17.8	11.7	16.8
		600	292					15.6	24.6	13.2	20.5
