DF3 Silencer

The DF3 silencer is compact and is used to discharge to the steam trap outlet of the inlet condensate return line. It reduces the noise and water hammer problems caused by rapid cooling of flash condensate at the trap discharge outlet.
The main body of the silencer is made of SS304, the inner part is stainless steel, and a filter device is installed at the inlet.

DF3 Silencer

Description

Description

The DF3 silencer is compact and is used to discharge to the steam trap outlet of the inlet condensate return line. It reduces the noise and water hammer problems caused by rapid cooling of flash condensate at the trap discharge outlet. The main body of the silencer is made of SS304, the inner part is stainless steel, and a filter device is installed at the inlet.

Nominal pressure PN25;
The maximum allowable temperature is 350°C;
Maximum working pressure 3.2 Mpa;
Maximum operating temperature350°C;
The connection method is threaded Rc, BSP, NPT

Technical Standard

ISO 14163-1998: Acoustics – Guidelines for noise control by silencers
ASME B16.34-2025:Valves for Flanged, Threaded, and Welded End Connections

Technical Parameter

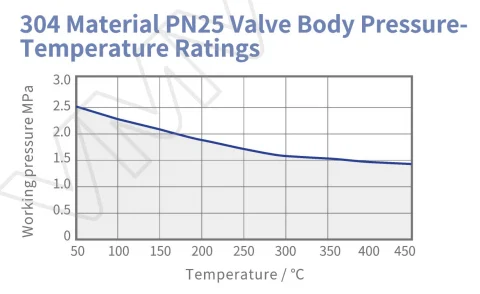

Model	Connection Method	Nominal Pressure PN MPa	Working Pressure Range MPa	Max ALLOWABLE Temp. @ Pre. MPa
DF1	thread	25	0.05-2.5	350°C/1.46MPa
DF2	thread	25	0.05-2.5	350°C/1.46MPa
DF3	thread	25	0.05-2.5	350°C/1.46MPa
