Y type Pressure Self Sealing Globe Valve 1

Y type Pressure Self-Sealing Globe Valve

Get A Quote

Y type Pressure Self-Sealing Globe Valve

  • 2025 年 6 月 7 日

Description

Y type Pressure Self Sealing Globe Valve
Y type Pressure Self Sealing Globe Valve

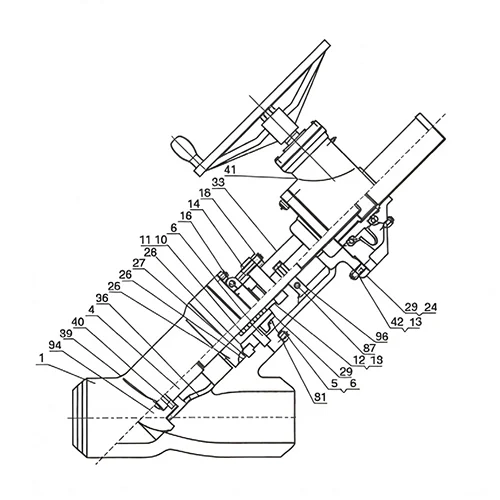

List of Typical Parts Materials

ItemWCBC5WC6CF8CF8M
1A216 WCBA217 C5A217WC6A351 CF8A351 CF8M
4A182 F6aA182 F6aA182 F6aA182 F304A182 F316
5A193 B7A19316A19316A193 B8A193 B8M
6A194 2HA194 7A194 7A194 8A194 8M
8A105A182 F5A182 F11A182 F304A182 F316
10Gasket
11A182 F6aA182 F304A182 F304A182 F304A182 F316
12A182 F6aA182 F304A182 F304A182 F304A182 F316
13A216 WCBC5WC6A351 CF8A351 CF8M
14A193 B7A19316A19316A193 B8A193 B8M
15A194 2HA194 7A194 7A194 8A194 8M
16103510351035304304
23304304304304304
24304304304304304
25A105A182 F5A182 F11A182 F304A182 F316
26304+Flexible graphite
27A182 F6aA182 F304A182 F304A182 F304A182 F316
28A182 F6aA182 F5A182 F11A182 F304A182 F316
29A216 WCBA216 C5A216 WC6A351 CF8A351 CF8M
31A193 B7A193 B16A193 B16A193 B8A193 B8M
33A216 WCBC5A216 WC6A351 CF8A351 CF8M
34A105A182 F5A182 F11A182 F304A182 F316
36A105F5F11F304F316
3710351035103510351035
38A193 B7A193 B16A193 B16A193 B8A193 B8M
39A105+STLF5+STLF11+STL304+STL316+STL
40410410410304316
41Finished Product
42A193 B7A193 B16A193 B16A193 B8A193 B8M
43A194 2HA194 7A194 7A194 8A194 8M

Note：The spacer rings are installed when required by the customer.



CLASS 600

Specification(NPS)Structure Length(mm)Centre-height(mm)Handwheel Diameter(mm)Weight(Kg)Specification (NPS)StructureLength(mm)Centre-height(mm)Handwheel Diameter(mm)Weight(Kg)
inLHWinLHW
6-858468471137210x8x10584684711408
1071189991483012x10x12711899914918
1281311571219116114x12x14813115712191281
1481311571219116116x14x16813115712191281
16104119651219252718x16x181041196512192778



CLASS 900

Specification(NPS)Structure Length(mm)Centre-height(mm)Handwheel Diameter(mm)Weight(Kg)Specification (NPS)StructureLength(mm)Centre-height(mm)Handwheel Diameter(mm)Weight(Kg)
inLHWinLHW
670510287113678x6x87051028711367
8762135671170910x8x107621356711675
109211615914131812x10x1292116159141305
12104119771219179514x12x141041197712191845
14109219771219179516x14x161092197712191845
16137222761219349518x16x181372227612193600
18160024921829355020x18x201600249218293600
20138428191829444622x20x221384281918295850
