Single pump trap system device (open) SPT20S

Single Pumping System Device(Open) SPT20S

Model: SPT20S (open system)
Name: Single Pump Trap System Device (open)
Weight: 280kg
Volume: 1000x750xl688 (mm)
Nominal pressure: PN16

Single Pumping System Device(Open) SPT20S

Description

Description

Model: SPT20S (open system)
Name: Single Pump Trap System Device (open)
Weight: 280kg
Volume: 1000x750xl688 (mm)
Nominal pressure: PN16
Maximum Allowable Pressure: 1.6mpa/204 °C
Maximum Working Pressure: 1.37mpa/250 °C
Flange Standard: HG/T20592; PN16 RF
Power Steam Consumption: 5kg / T (condensate)
Power Air Consumption: 7.6m3/t (condensate)
Limitation:The water collecting tank (upper water tank) is not under pressure and is only used as open buffer water collection

Technical Standard

.GB/T17250-2005 Steam Traps Terminology Marking
Construction Length
.GB/T22654-2008Technical conditions of steam traps
.GB/T12251-2005 Test methods for steam traps
ISO 6948 Automatic steam traps
Production and performance characteristic tests

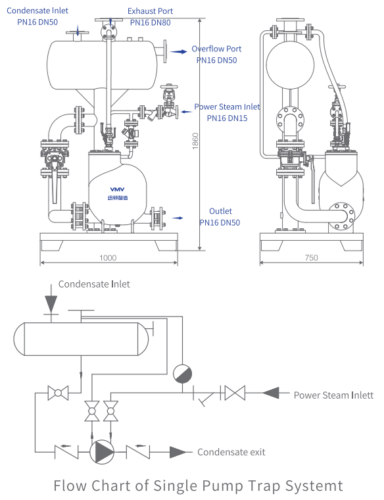

Structure Chart

Part Name	Part Model	Specifications	Material	Quantity
Pump Steam Trap	PT20	DN80/DN50	WCB	1
Check Valve	H71H-16P	DN80 PN16	304	1
Check Valve	H71H-16P	DN50 PN16	304	1
Open water collecting tank			Q345	1
Ball Valve	Q11H-16P	DN25	304	1
Ball Valve	Q11H-16P	DN15	304	1
Steam Trap	STD16F-16	DN15	WCB	1
Bellow Seal Globe Valve	WJ41H-16C	DN15 PN16	WCB	1
Base			Q345	1
Ball Valve	Q41H-16C	DN80 PN16	WCB	1
Filter	YG4SH－16C	DN15 PN16	WCB	1
Exhaust hose		DN25 PN16	304	1
