S1 Sight Glass

1. The structure is compact, saving installation space to the greatest extent and meeting customer needs.
2. Provide customized threaded connections (BSP or NPT) to meet the individual needs of customers.

Description

Overview

Single window sight glass, threaded connection, available in different sizes in bronze and brass products.

Structural Features

1. The structure is compact, saving installation space to the greatest extent and meeting customer needs.
2. Provide customized threaded connections (BSP or NPT) to meet the individual needs of customers.
3. Temperature resistant calcified glass lens with explosion proof function.
4. Flexible graphite gasket with high sealing and erosion resistance.

Applicable Scope

It is used for the flow and reaction of liquid, gas, steam and other media in the pipelines of petroleum, chemical, pharmaceutical, food and other industrial production equipment, and plays a role in monitoring production and avoiding accidents in the production process.

Warning

Condensed water in some applications can dissolve the window glass, especially if the water contains corrosive alkaline and acidic substances. Therefore, it is recommended to check the window glass regularly and replace the glass immediately if it becomes thinner. When viewing, wear goggles to protect your eyes.

Technical Parameter
Model Connection Method Nominal Pressure PN Working Pressure Range MPa Condition
Temperature℃@
Pressure MPa
S1 Screw thread 5 0.05-0.35 [email protected]
Screw thread 5 0.05-0.35 [email protected]
Screw thread 5 0.05-0.35 [email protected]
Screw thread 5 0.05-0.35 [email protected]

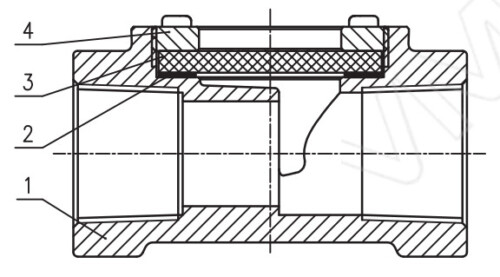

Body: A105
Gasket: Flexible Graphite
Window: high temperature quartz glass
Bonnet: A105



S1 Sight Glass

S1 Sight Glass Data sheet

unit (mm)

Model Nominal Size L W S h1 h2 E F Weight
S1 DN10 89   63   31   16   29   51    5 0. 55Kg
DN15 89   63   31   16   29   51    5 0. 55Kg
DN20 89   63   37   19   32   51    5 0. 65Kg
DN25 90   63   47   24   33   51    5 0. 8Kg
