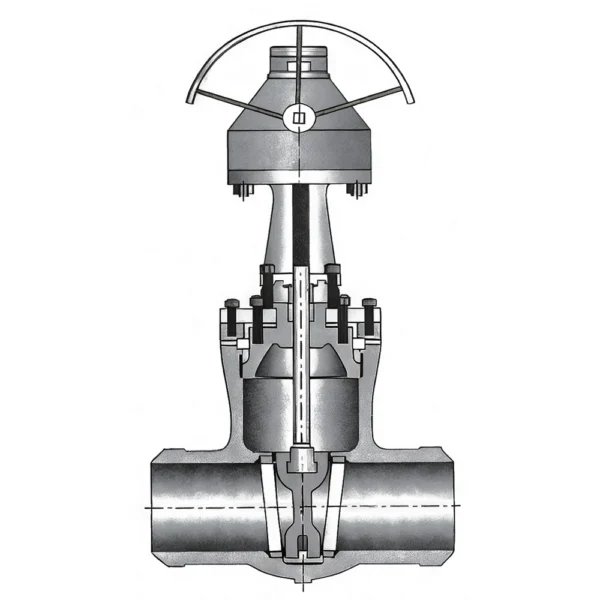

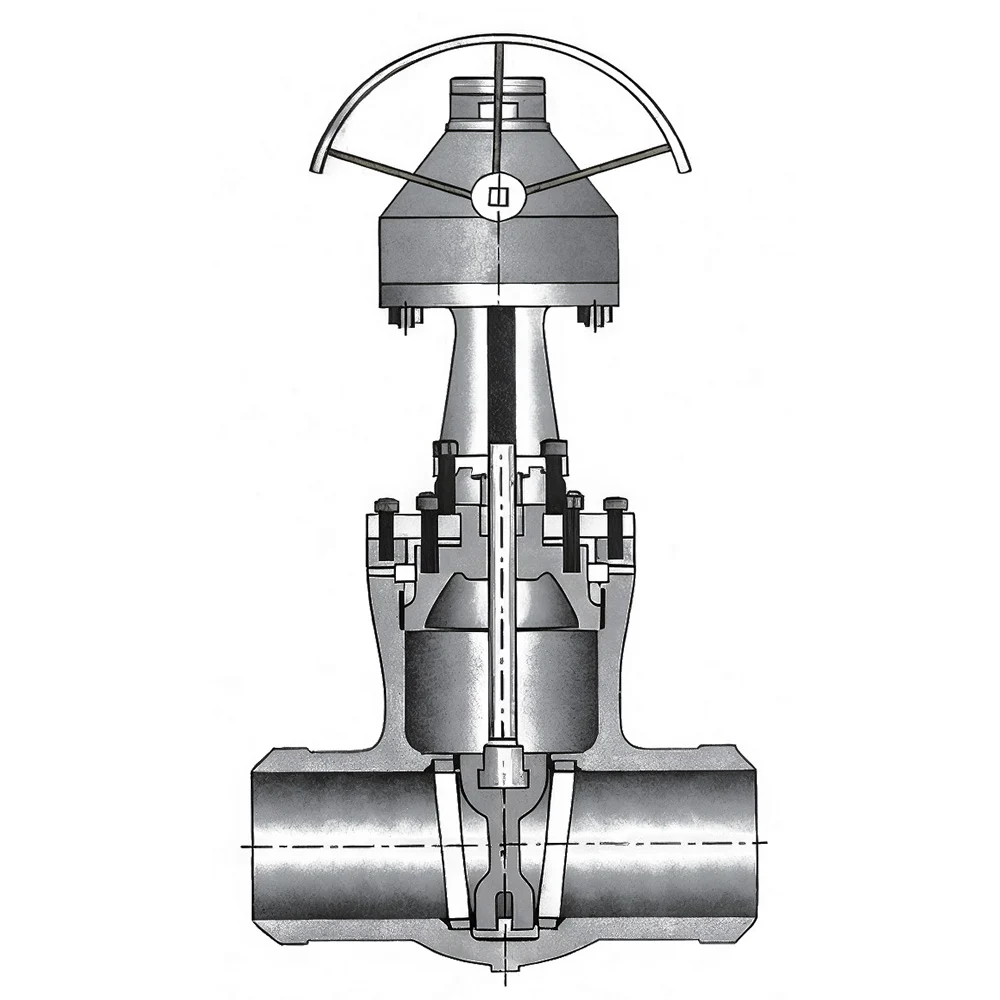

Pressure Self Sealing Wedge Gate Valve

Pressure Self Sealing Wedge Gate Valve

Get A Quote

Pressure Self Sealing Wedge Gate Valve

  • 2025 年 6 月 5 日

Description

Pressure Self Sealing Wedge Gate Valve Drawing

Main dimension and weight

CLASS 600

Size L L1 L2 L2 long structure H W H1 W1 T WT（RF)
inch mm mm mm mm mm mm mm mm mm N. m Kg
2 50 368 371 216 368 482 300 — — 122 50
2-1/2 65 419 422 254 419 525 300 — — 170 74
3 80 381 384 305 381 598 350 — — 224 90
4 100 457 460 356 457 675 400 — — 338 110
6 150 610 613 508 610 928 600 1035 310 553 195
8 200 737 740 660 737 — — 1190 460 946 505
10 250 838 841 787 838 — — 1480 530 1376 745
12 300 965 968 914 965 — — 1560 530 2159 1060
14 350 1029 1039 991 1029 — — 1775 600 2508 1410
16 400 1130 1140 1092 1130 — — 2010 600 3419 1960

CLASS 1500

Size L L1 L2 L2 long structure H W H1 W1 T WT（RF)
inch mm mm mm mm mm mm mm mm mm N. m Kg
2 50 368 371 216 368 550 350 — — 167 50
2-1/2 65 419 422 254 419 554 350 — — 280 74
3 80 470 473 305 470 675 400 — — 385 90
4 100 546 549 406 546 750 450 1033 460 560 158
6 150 705 711 559 705 — — 1155 460 1100 350
8 200 832 841 711 832 — — 1440 600 1685 690
10 250 991 1000 864 991 — — 1580 600 2906 1030
12 300 1130 1146 991 1130 — — 1770 600 4188 1460
14 350 1257 1276 1067 1257 — — 1820 600 5222 1810
16 400 1384 1406 1194 1384 — — 1960 600 6504 2760

CLASS 2500

Size L L1 L2 L2 long structure H W H1 W1 T WT（RF)
inch mm mm mm mm mm mm mm mm mm N. m Kg
2 50 451 454 279 451 535 350 — — 288 60
2-1/2 65 508 514 330 508 563 350 — — 420 100
3 80 578 584 368 578 680 350 910 310 594 110
4 100 673 683 457 673 742 550 1000 460 1000 200
6 150 914 927 610 914 — — 1140 460 1530 530
8 200 1022 1038 762 1022 — — 1380 600 2200 750
10 250 1270 1292 914 1270 — — 1670 600 3400 1610
12 300 1422 1445 1041 1422 — — 1995 600 4600 3010
14 350 — — 1118 — — — 2291 600 6200 3410
16 400 — — 1245 — — — 2470 600 7500 4210
