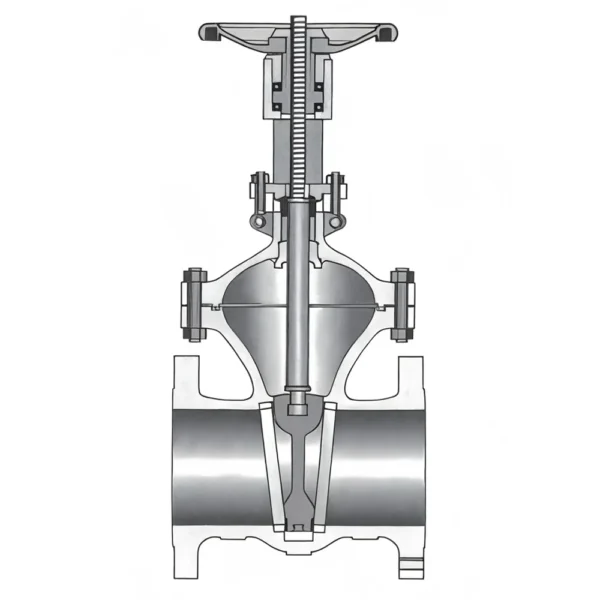

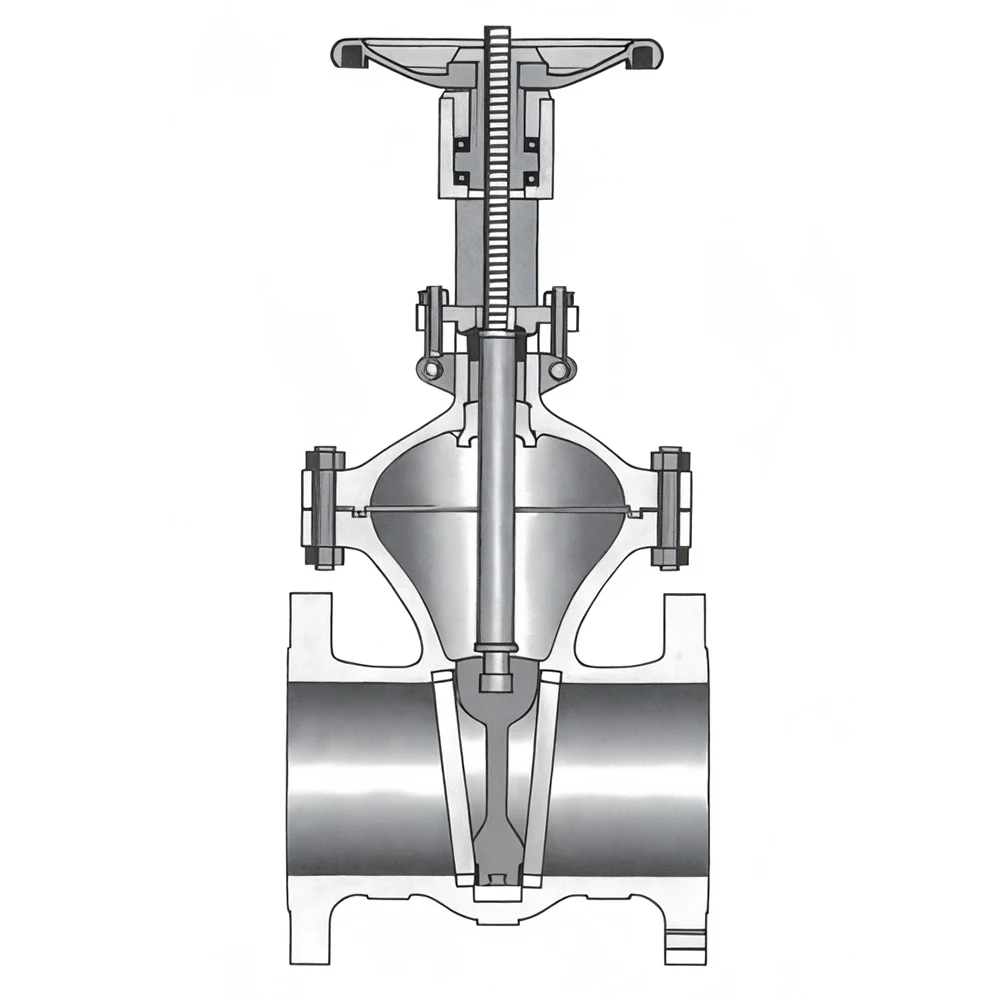

Cast Steel Wedge Gate Valve

Description

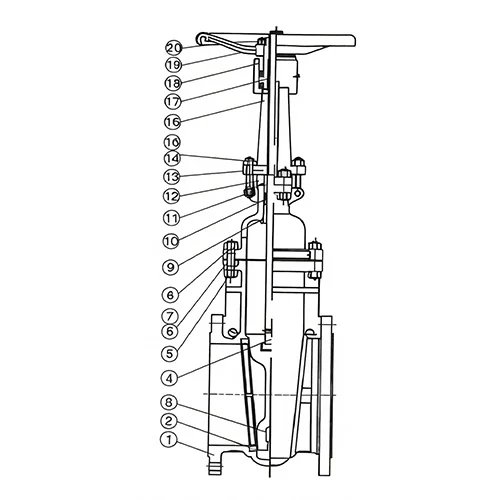

Part Name

1	Body	11	Pin
2	Seat	12	Packing gland
3	Wedge	13	Packing plate
4	Stem	14	Eye Bolt
5	Gasket	15	Nut
6	Nut	16	Yoke
7	Bolt	17	Stem nut
8	Bonnet	18	Bearing gland
9	Backseat	19	Handwheel
10	Packing	20	Lock nut

DIN Standard Pressure Testing(Body WCB)

Nominal Pressure(PN)	Back Seal test	Shell strength testing	High pressure sealing testing	Low pressure sealing testing
1.6	1.76	2.4	1.76	0.6
2.5	2.75	3.75	2.75
4.0	4.4	6.0	4.4
6.4	7.04	9.6	7.04
10.0	11.0	15.0	11.0

ANSI Standard Pressure Testing(Body WCB)

Pressure (Class)	Back Seal test	Shell strangth testing	High pressure sealing testing	Low pressure sealing testing
150	2.2	3.0	2.2	0.6
300	5.65	7.7	6.5
600	11.2	15.3	11.2
900	16.8	23	16.8
1500	28.1	38.3	28.1
2500	46.8	63.8	46.8

Main part materials

Part Name	Carbon Steel		Alloy steel
Body	A216 WCB	A352 LCB	A217 WC6	A217WC9	A217 WC5
Seat	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 WC5
Wedge	A182 F6a	A182 F304	A182 F304	A182 F304	A182 F304
Stud	A193 B7	A320 L7	A193 B16	A193 B16	A193 B16
Nut	A194 2H	A194 7	A194 7	A194 7	A194 7
Yoke	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5
Backseat	A182 F6a	A182 F304	A182 F304	A182 F304	A182 F304
Packing gland	A276 410	A276 304	A278 304	A276 304	A276 304
Packing plate	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5

Part Name	Stainless steel
Body	A351 CF8	A351 CF8M	A351 CF3	A51 CF3M	CD3MN
Seat	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN
Wedge	A182 F304	A182 F316	A182 F304L	A182 F316L	F51
Stud	A193 B8	A193 B8M	A193 B8	A193 B8M	A193 B8M
Nut	A1948	A194 8M	A194 8	A194 8M	A194 8M
Yoke	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN
Backseat	A182 F304	A182 F316	A182 F304L	A182 F316L	F51
Packing gland	A276 304	A276 316	A276 304	A276 316	F51
Packing plate	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN

Note:1. All parts of the valve are made of materials that comply with ASTM standards;

2.The above is the VMV standard configuration. If the customer has special requirements, VMV can select materials according to their working conditions.

Main dimension and weight

CLASS 150

Size		L	L1	L2	H	W
inch	mm	mm	mm	mm	mm	mm
2	50	178	191	216	340	250
2-1/2	65	190	203	241	370	250
3	80	203	216	282	403	280
4	100	229	242	305	447	300
5	125	254	267	381	525	300
6	150	267	280	403	600	350
8	200	292	305	419	746	400
10	250	330	343	457	900	400
12	300	356	369	502	1056	500
14	350	381	394	572	1187	600
16	400	406	419	610	1345	600
18	450	432	445	660	1487	600
20	500	457	470	711	1630	680
24	600	508	521	813	1931	800
26	650	559	–	864	–	–
28	700	610	–	914	–	–
30	750	610	–	914	–	–
32	800	660	–	965	–	–
36	900	711	–	1016	–	–

Size	H1	W1	T	WT(RF)
inch	mm	mm	N.m	Kg
2	–	–	12.4	20
2-1/2	–	–	17	30
3	–	–	23	33
4	–	–	34.5	49
5	–	–	60	60
6	–	–	85	75
8	–	–	125	120
10	1240	310	138	205
12	1460	460	200	290
14	1600	460	276	400
16	1830	460	396	511
18	2025	460	491	650
20	2225	460	650	789
24	2625	530	1018	1200
26	2876	530	–	–
28	3174	610	1492	1800
30	3406	610	1703	2560
32	3515	610	2127	3060
36	3920	610	2563	3500

CLASS 300

Size		L	L1	L2	H	W
inch	mm	mm	mm	mm	mm	mm
2	50	216	232	216	340	250
2-1/2	65	241	257	241	370	250
3	80	282	298	282	412	280
4	100	305	321	305	450	300
5	125	381	397	381	575	350
6	150	403	419	403	618	400
8	200	419	435	419	760	450
10	250	457	473	457	937	500
12	300	502	518	52	1090	600
14	350	762	778	762	1265	700
16	400	838	854	838	1370	700
18	450	914	930	914	1510	800
20	500	991	1010	991	1710	800
24	600	1143	1165	1143	–	–
26	650	1245	1270	1245	–	–
28	700	1346	1371	1346	–	–
30	750	1397	1422	1397	–	–
32	800	1524	1552	1524	–	–
36	900	1727	1755	1727	–	–

Size	H1	W1	T
inch	mm	mm	N.m	Kg
2	–	–	27.5	24
2-1/2	–	–	40	36
3	–	–	54	47
4	–	–	80	69
5	–	–	194	89
6	–	–	202	123
8	–	–	226	196
10	1275	310	354	333
12	1494	460	558	440
14	1639	530	736	710
16	1830	530	966	950
18	2110	530	1259	1405
20	2295	530	1540	720
24	2676	610	2658	2770
26	–	–	–	–
28	3178	610	4264	3312
30	3396	610	5403	4100
32	3700	610	6600	5200
36	4115	610	7900	6700

CLASS 600

Size		L	L1	L2	H	W
inch	mm	mm	mm	mm	mm	mm
2	50	292	295	292	375	250
2-1/2	65	330	333	330	405	250
3	80	356	359	356	463	300
4	100	432	435	432	550	350
6	150	559	562	559	715	500
8	200	660	663	660	888	600
10	250	787	790	787	995	600
12	300	838	841	838	1140	700
14	350	889	892	889	1275	700
16	400	991	994	991	—	—
18	450	1092	1095	1092	—	—
20	500	1194	1200	1194	—	—
24	600	1397	1407	1397	—	—

Size	H1		T	WT(RF)
inch	mm	mm	N.m	Kg
2	—	—	54	39
2-1/2	—	—	84	52
3	—	—	116	88
4	—	—	209	114
6	958	310	329	285
8	1140	460	592	413
10	1375	460	937	650
12	1551	460	1401	800
14	1713	600	1773	1140
16	2008	600	2215	1700
18	2140	600	2952	2268
20	2360	600	3862	2850
24	2840	600	5505	3500

CLASS 900

Size		L	L1	L2	H	W
inch	mm	mm	mm	mm	mm	mm
2	50	368	371	368	470	300
2-1/2	65	419	422	419	512	350
3	80	381	384	381	515	350
4	100	457	460	457	615	400
6	150	610	613	610	834	600
8	200	737	740	737	875	600
10	250	838	841	838	1040	650
12	300	965	968	965	1150	700
14	350	1029	1039	1029	—	—
16	400	1130	1140	1130	—	—

Size	H1		T	WT(RF)
inch	mm	mm	N.m	Kg
2	—	—	122	72
2-1/2	—	—	170	101
3	—	—	224	130
4	—	—	338	197
6	1000	310	553	404
8	1130	460	946	650
10	1520	460	1376	850
12	1720	460	2159	1177
14	1795	600	2508	1500
16	1908	600	3419	1920

CLASS 1500

Size		L	L1	L2	H	W
inch	mm	mm	mm	mm	mm	mm
2	50	368	371	368	462	300
2-1/2	65	419	422	419	512	350
3	80	470	473	470	550	400
4	100	546	549	546	752	550
6	150	705	711	705	—	—
8	200	832	842	832	—	—
10	250	991	1001	991	—	—
12	300	1130	1146	1130	—	—
14	350	1257	1276	1257	—	—
16	400	1384	1406	1384	—	—

Size	H1		T	WT(RF)
inch	mm	mm	N.m	Kg
2	—	—	167	85
2-1/2	—	—	280	130
3	—	—	385	170
4	940	460	590	304
6	1166	460	1100	646
8	1370	460	1685	1100
10	1550	600	2906	1600
12	1800	600	4188	2106
14	2200	600	5222	2700
16	2550	600	6504	3500

Company

Who We Are

Corporate Responsibility

Steam Traps Series

Mechanical

Thermodynamic

Thermostatic

Manifolds

Steam Trap Station

Condensate Recovery Pump

Others

System

Air Trap

Bellows Sealed Valves

Control Valves

GGC Valves

High Quality Valve Industry Solutions

Successfully Implemented Project Solutions

VMV Quality-first manufacturing

Equipment Part

Service Part

Customer Support

Resources

Services

Product Categories

Cast Steel Wedge Gate Valve

Cast Steel Wedge Gate Valve

Description

Part Name

DIN Standard Pressure Testing(Body WCB)

ANSI Standard Pressure Testing(Body WCB)

Main part materials

Main dimension and weight

Related Products

Comprehensive Steam and Thermal Energy System Solutions Manufacturer

Company

Who We Are

Corporate Responsibility

High Quality Valve Industry Solutions

Successfully Implemented Project Solutions

VMV Quality-first manufacturing

Equipment Part

Service Part

Customer Support

Resources

Services

Product Categories

Cast Steel Wedge Gate Valve

Cast Steel Wedge Gate Valve

Description

Part Name

DIN Standard Pressure Testing(Body WCB)

ANSI Standard Pressure Testing(Body WCB)

Main part materials

Main dimension and weight

Related Products

Related products

DIN Cast Steel Gate Valve

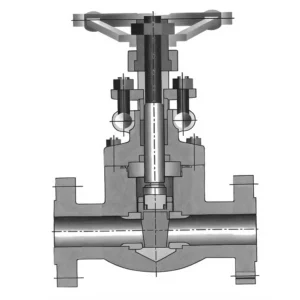

Forged Steel Flange, Butt Welding Gate Valve
