Pressure Self-Sealing Globe Valve

  • 2025 年 6 月 6 日

Description

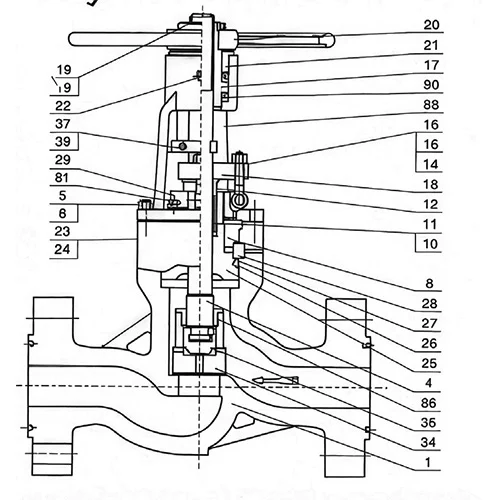

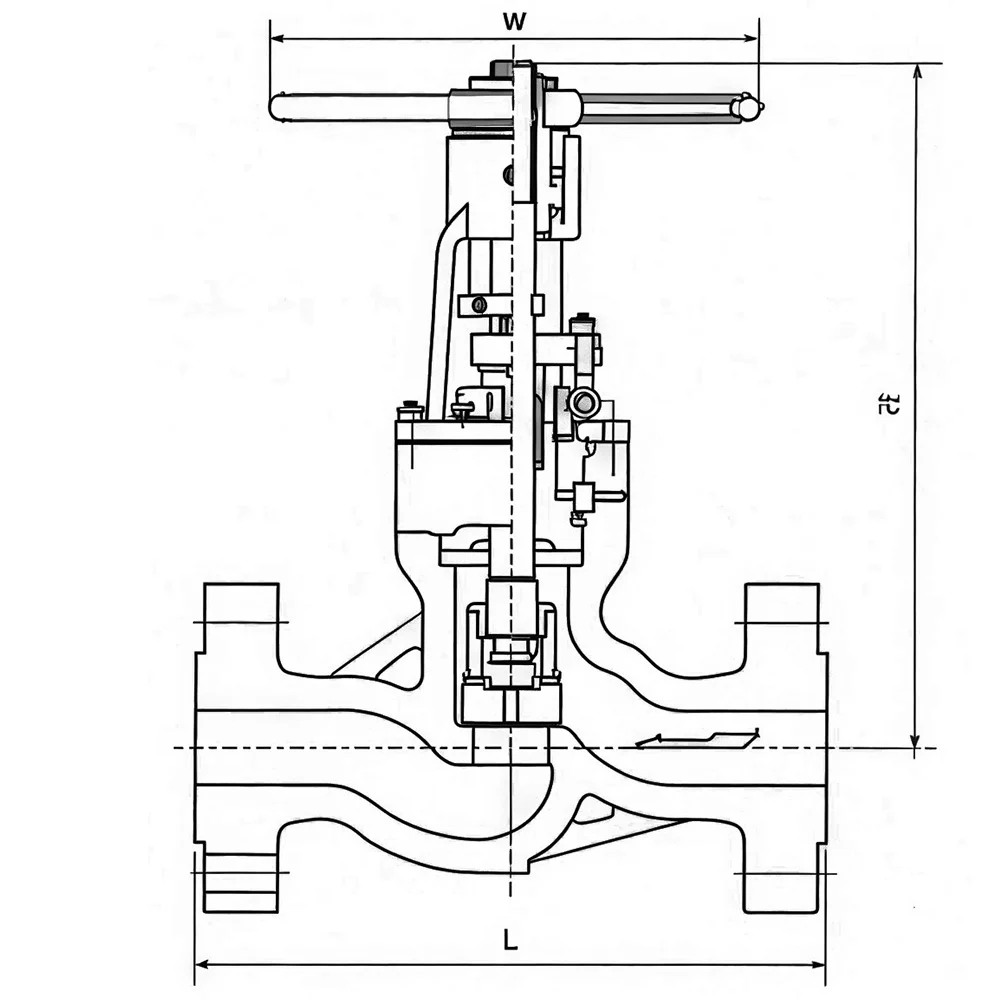

Pressure Self Sealing Globe Valve Drawing

List of Typical Parts Materials

Item WCB WC6 WC9 CF8 CF3M CE3MN
1 A216 WCB WC6 WC9 CF8 CF3M CE3MN
4 A182 F6a A182 F6a A182 F6a A182 F304 F316L F53
5 A193 B7 A193 B16 A193 B16 A193 B8 A193 B8M A194 B8M
6 A1942H A1944 A1944 A1948 A1948M A1938M
8 A105 F11 F22 A182 F304 A182 F316L A182 F53
10 Flexible graphite
11 A182 F6a A182 F6a A182 F6a A182 F304 F316L F53
12 A182 F6a A182 F6a A182 F6a A182 F304 F316L F53
13 A216 WCB A2166 A2169 A182 CF8 A182 CF3M A182 CE3MN
14 A193 B7 A193 B16 A193 B16 A193 B8 Flexible graphite ble graphite
15 A1942H A1947 A1947 A1948 A1948M A1948M
16 1035 1035 1035 304 304 304
17 A439 D2 A439 D2 A439 D2 A439 D2 A439 D2 A439 D2
18 1035 1035 1035 1035 1035 1035
19 SS SS SS SS SS SS
20 A216 WCB A216 WCB A216 WCB A216 WCB A216 WCB A216 WCB
21 1035 1035 1035 SS SS SS
22 Finished Product
23 304 304 304 304 304 304
24 304 304 304 304 304 304
25 A216 WCB A216 WC6 A216 WC9 CF8 CF3M CE3MN
26 Flexible graphite
27 A182 F6a A182 F304 A182 F304 A182 F304 A182 F316L A182 F53
28 A182 F6a A182 F11 A182 F22 A182 F304 A182 F316L A182 F53
29 A216 WCB A216 WCB A216 WCB CF8 CF8 CF8
30 40Cr 40Cr 40Cr 40Cr 40Cr 40Cr
31 A193 B7 A193 B16 A193 B16 A193 B8 A193 B8 A193 B8
33 A216 WCB A216 WC6 A216WC6 CF8 CF3M CF3MN
34 A105 A182 F11 A182 F22 A182 F304 A182 F316L A182 F53
35 A105 A182 F11 A182 F22 A182 F304 A182 F316L A182 F53
36 1035 F11 F22 A182 F304 A182 F316L A182 F53
37 1035 1035 1035 SS SS SS
38 A193 B7 A193 B16 A193 B16 A193 B8 A193 B8M A193 B8M

Note：The spacer rings are installed when required by the customer.

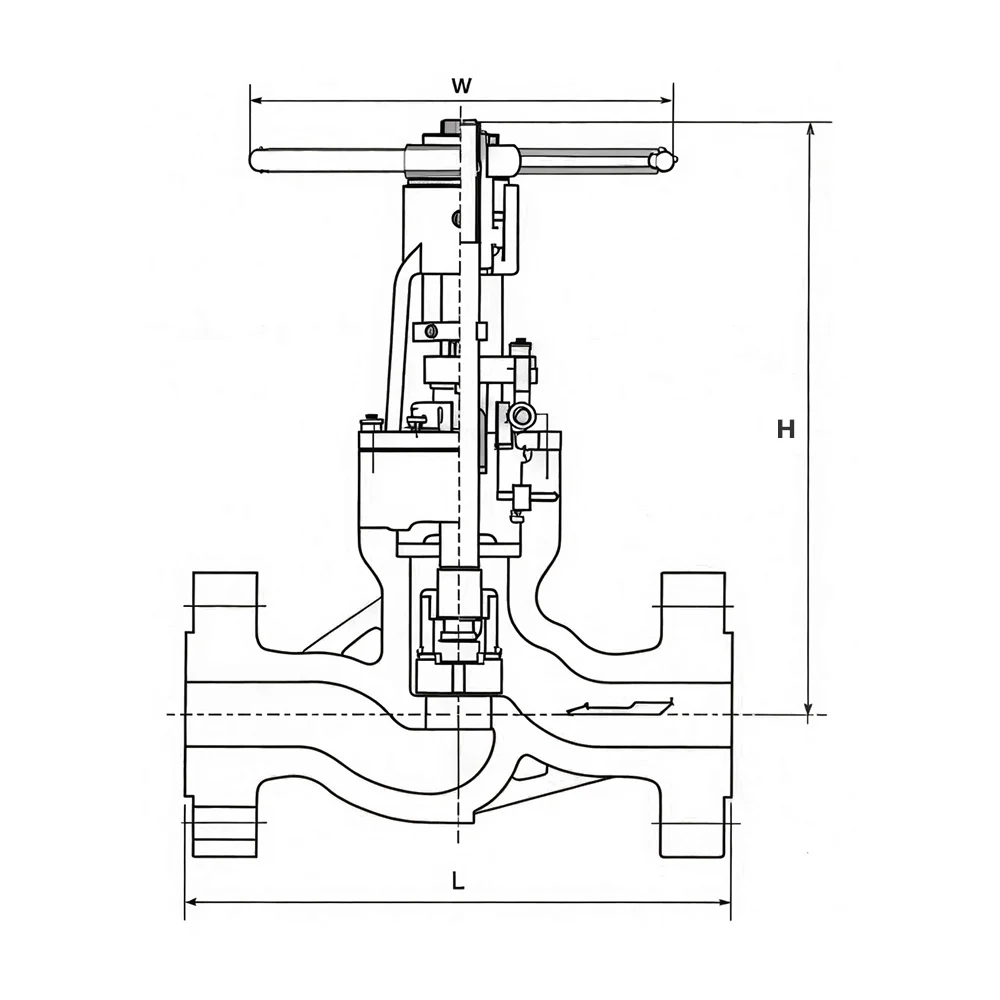

CLASS 900

Specification
(NPS)		 Structure Length
（mm）		 Centre-height
(mm)		 Handwheel
Diameter(mm)		 Weight
(Kg)		 Weight
(Kg)
in L L2 L1 H W
2 368 216 371 590 350 41 68
2-1/2 419 254 422 650 350 41 68
3 381 305 384 697 350 41 68
4 457 356 460 768 500 90 124
6 610 508 613 825 460 261 346
8 737 660 740 990 460 437 600
10 838 787 841 1186 460 727 929
12 965 914 968 1320 460 1030 1324
14 1029 991 1039 1524 914 1534 2009

CLASS 1500

Specification
(NPS)		 Structure Length
（mm）		 Centre-height
(mm)		 Handwheel
Diameter(mm)		 Weight
(Kg)		 Weight
(Kg)
in L L1 L2 H W
2 368 371 216 590 350 47 75
2-1/2 419 422 254 680 406 47 75
3 470 473 305 778 450 79 115
4 546 549 406 685 460 151 208
6 705 711 559 933 711 367 503
8 832 842 711 1193 914 626 852
10 991 1001 864 1270 600 1163 1533
12 1130 1146 991 1447 600 1835 2390

CLASS 2500

Specification
(NPS)		 Structure Length
（mm）		 Centre-height
(mm)		 Handwheel
Diameter(mm)		 Weight
(Kg)		 Weight
(Kg)
in L L1 L2 H W
2 451 454 279 760 450 74 117
2-1/2 508 524 330 495 406 74 117
3 578 584 368 603 460 114 195
4 673 683 457 685 460 140 260
6 914 927 610 971 460 459 770
8 1022 1038 762 1200 914 767 1238
10 1270 1292 914 1416 1066 1320 2222
12 1422 1444 1041 1524 1066 1905 3310

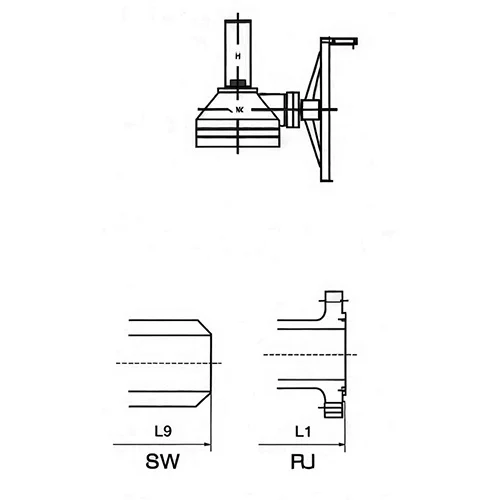

Pressure Self Sealing Globe Valve Parts Display
