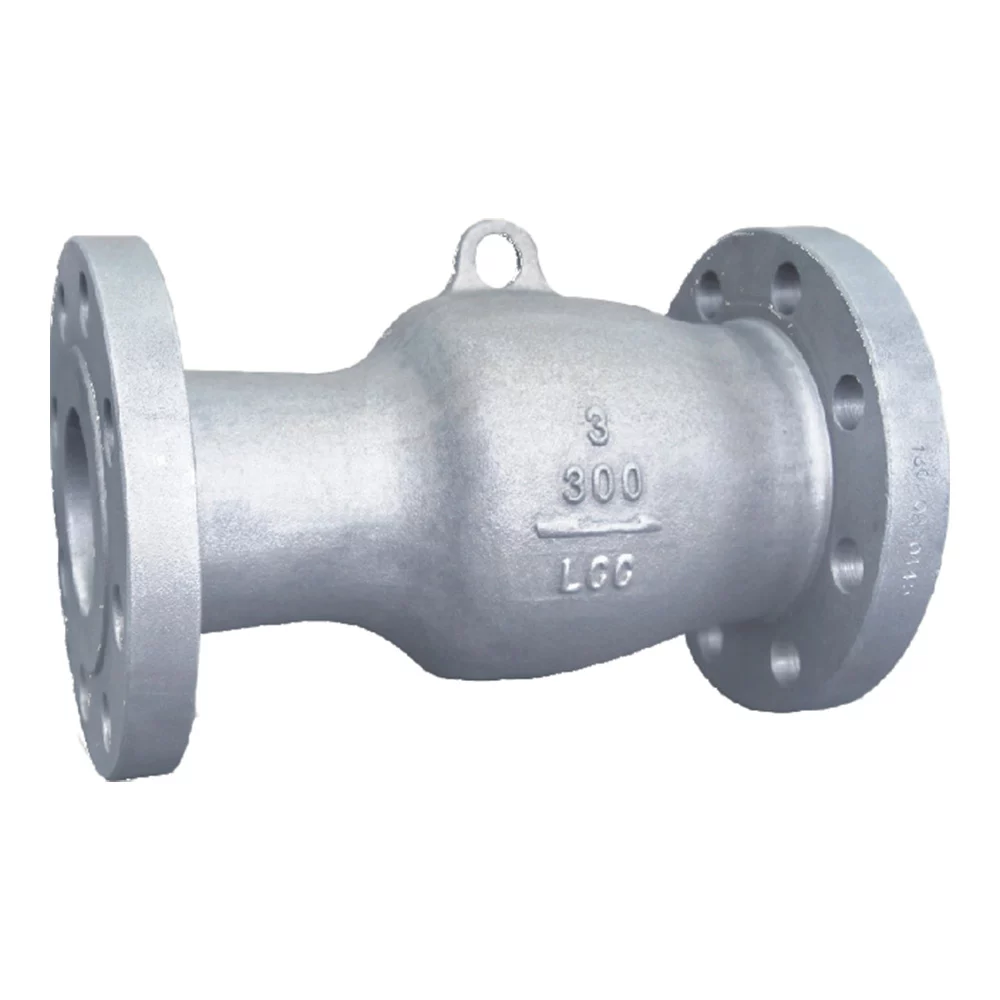

Low-temp. Check Valve

Description

Product Features

The valve parts in contact with the medium are strictly low-temperature treated according to the requirements of the specification before finishing to ensure that the valve parts can fully withstand the expansion and contraction caused by temperature change, and the structure of the valve seat part will not be permanently deformed due to temperature changes.

The valve seat and disc sealing surface cladding with CoCrW.

Adopt the built-in bracket structure to avoid the leakage of the medium at low temperature;

Welding sleeves can be customized if needed.

1、Design standard:

BS 6364 Cryogenic valves

MESCSPE 77/200 Valve specifications for cryogenic media

ISO 15848 Fugitive emission test for valves

2、End connection:

ASME B16.5 Pipe flanges and flange fittings

ASME B16.25 Butt welding end

3、Test and inspection:

API598 Technical conditions for cryogenic valves

BS 6364 Technical conditions for cryogenic steel valve castings

MESC SPE 77/200 Valve specifications for cryogenic media

ISO 15848 Fugitive emission test for valves

Main parts material

Product range

Nominal size:1/2″–36″(DN15-900)

Pressure:ANSI/ASME150Lb-1500Lb(PN1.6-25.0Mpa)

Applicable temperature:-29–196℃
