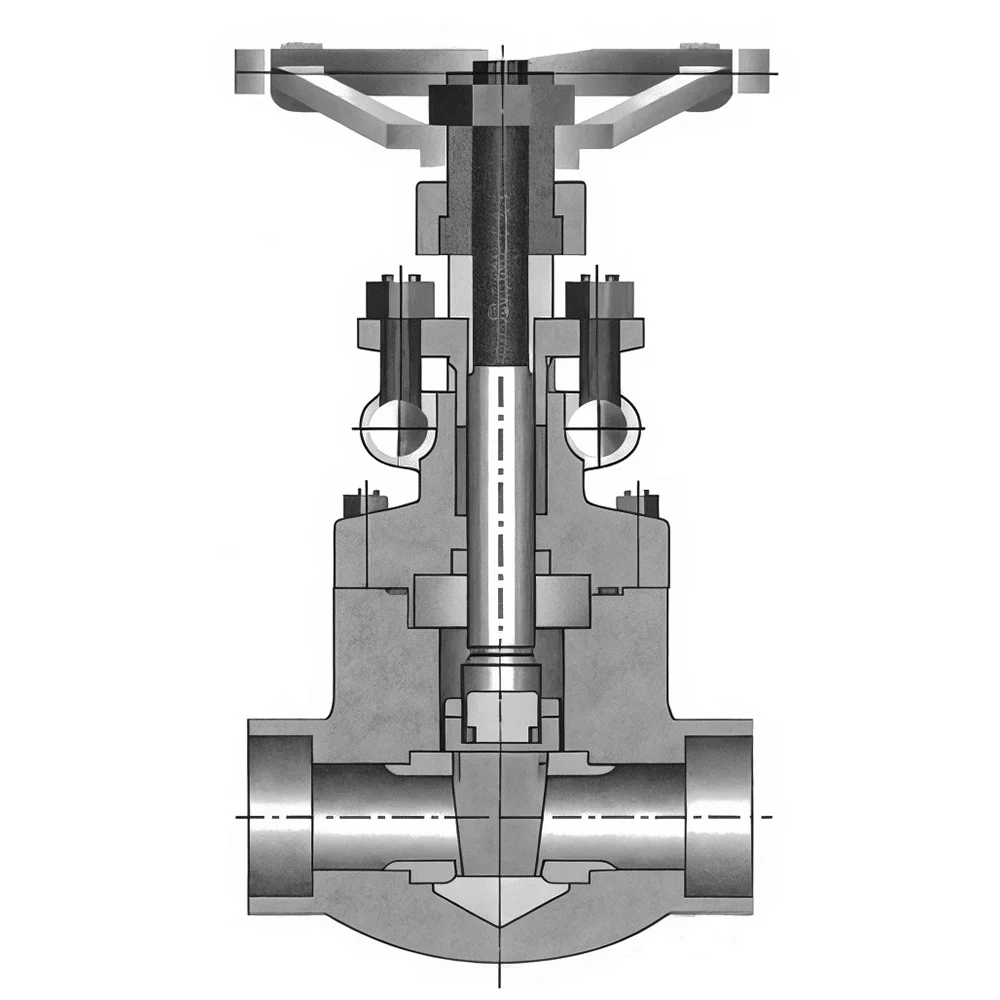

Forged Steel Threaded, Socket Weld Gate Valve

Forged Steel Threaded, Socket Weld Gate Valve

Forged Steel Threaded, Socket Weld Gate Valve

Description

Description

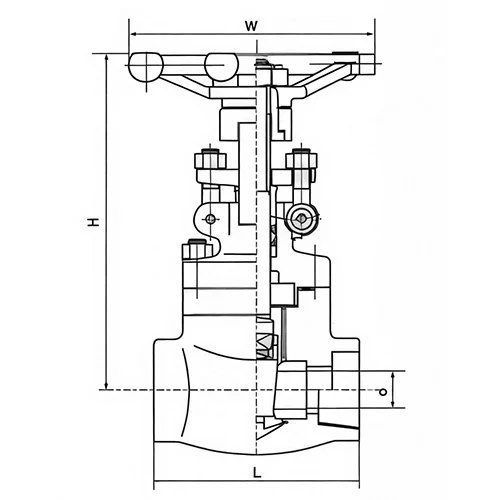

Main dimension and weight

CLASS 150~800

Size				L (mm)	W (mm)	H Open (mm)	WT(Kg)
inch		mm					WT(Kg)
Reduced bore	Full bore	Reduced bore	Full bore				Reduced bore	Full bore
1/4	—	8	—	79	100	166	2.2	—
3/8	1/4	10	—	79	100	166	2.2	2.2
1/2	3/8	15	10	79	100	166	2.2	2.2
3/4	1/2	20	15	92	100	169	2.2	2.2
1	3/4	25	20	111	125	193	4.7	4.3
1-1/4	1	32	25	120	160	236	5.9	5.9
1-1/2	1-1/4	40	32	120	160	146	6.9	6.9
2	1-1/2	50	40	140	180	283	11.1	11.1
—	2	—	50	178	200	330	—	15.2

CLASS 900~1500

Size		Class rating	L (mm)	W (mm)	H Open (mm)	WT(Kg)
inch	mm	Class rating	L (mm)	W (mm)	H Open (mm)	B.B	W.B
1/4	8	900	79	100	166	2.2	—
1/4	8	1500	111	125	197	4.6	4.7
3/8	10	900	79	100	166	2.2	—
3/8	10	1500	111	125	197	4.3	4.4
1/2	15	900	92	100	169	2.2	—
1/2	15	1500	111	125	197	4.2	4.3
3/4	20	900	111	125	193	4.3	—
3/4	20	1500	111	125	197	4	4.2
1	25	900	120	160	230	5.9	—
1	25	1500	120	160	218	6.3	6.6
1-1/4	32	900	120	160	246	6.9	—
1-1/4	32	1500	120	160	237	8.7	8.8
1-1/2	40	900	140	180	283	11.1	—
1-1/2	40	1500	140	180	274	12.1	12.5
2	50	900	178	200	330	15.2	—
2	50	1500	178	200	320	17.2	17.2

B.B-bolted valve bonnet W.B-welded valve bonnet
