Description
Product Advantage
VMV New Model
- Intergral Forged Steel Y Strainer

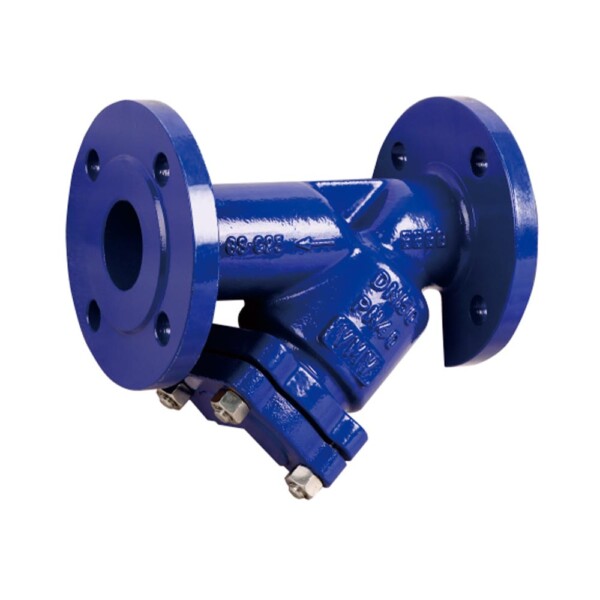

- Cast Steel Y Strainer

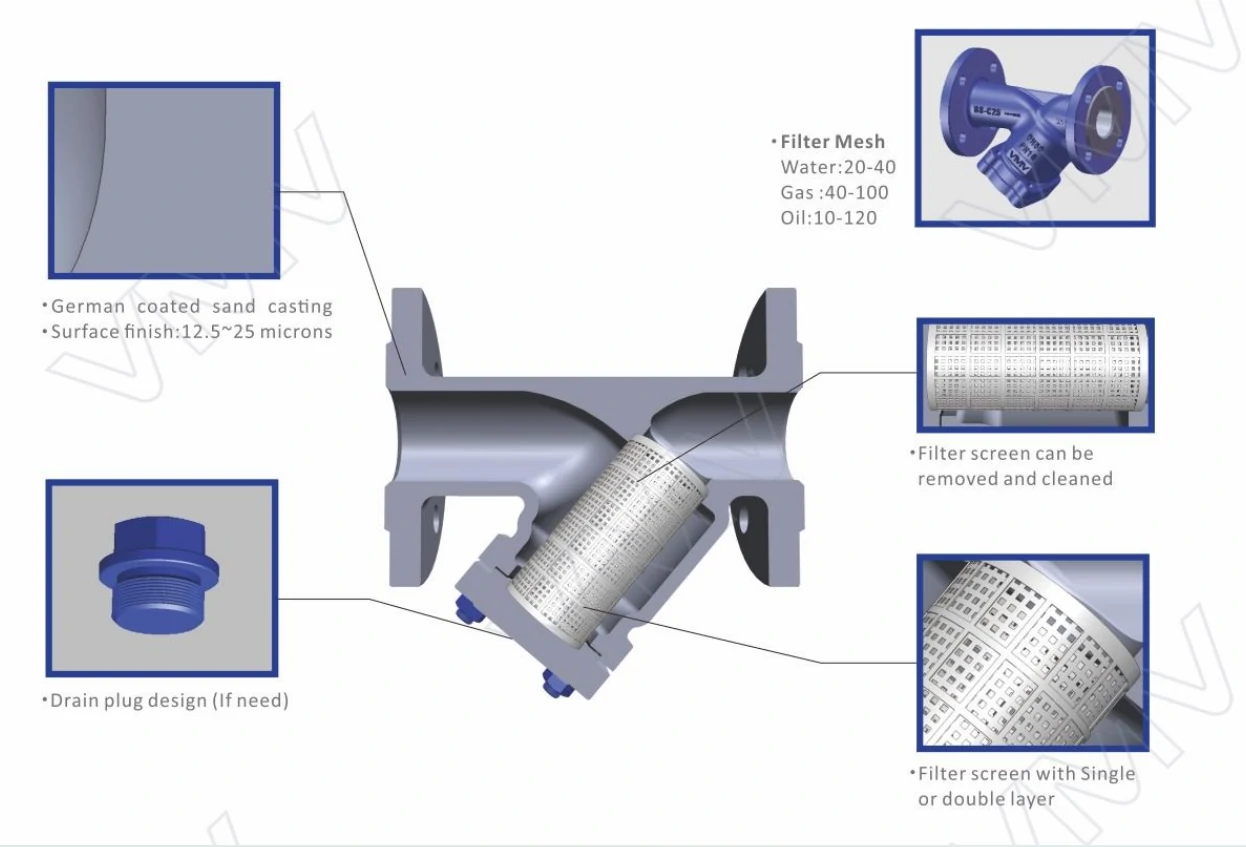

- Y Strainer is used to separate the impurity of media. It can protect the normal use of valves and equipment.
- Stainless steel filter screen make better performance and corrosion resistance.
- Easy maintenance,filter screen can be removed and cleaned.
Specifications
- Design standard: EN12516
- Face to face dimension: EN558
- Flange ends: EN1092-1
- Test & inspection: EN12266
Application
Thermal oil,Steam,Hot and cold water,Fatty acids, Ammonia, Natural gas, etc.
Main Part Materials
| Name | Material |
| Body | GS-C25、CF8、CF8M、CF3M |
| Seat | 13Cr、SS304、SS316、Stellite |
| Disc | 13Cr、F304、F316、Stellite |
| Bellows | SS304、SS316L |
| Stem | 13Cr、SS304、Copper alloy |
| Bonnet | GS-C25、CF8、CF8M、CF3M |
Performance Table
| Nominal Pressure | PN(MPa) | |
| Test Pressure | Shell Test | 1.5 xPr |
| Sealing Test | 1.1xPr | |
| Air Test | 0.6 | |
| Bellows Assembly Test | 1.5x Pr | |
| Suitable Temp | -196℃~600℃ | |
| Note: Pr is the pressure rating of the material at room temperature, the unit is MPa | ||
