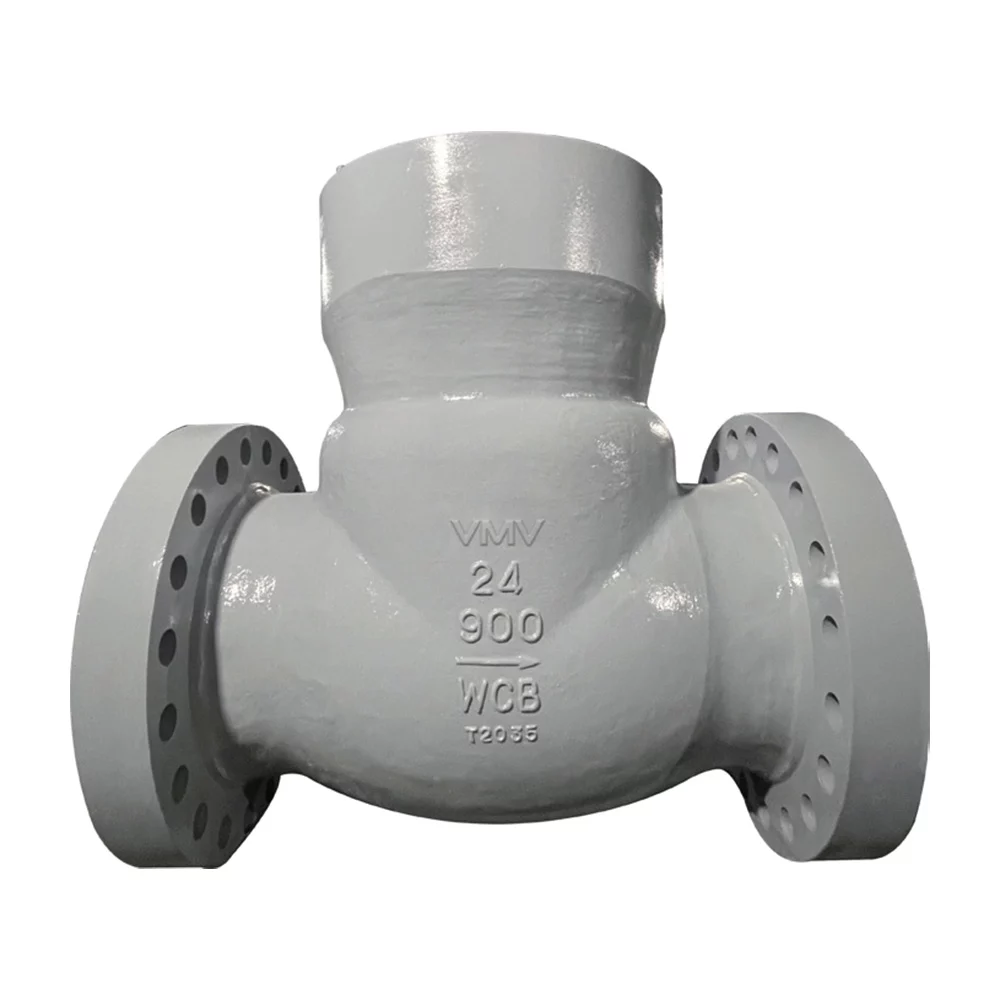

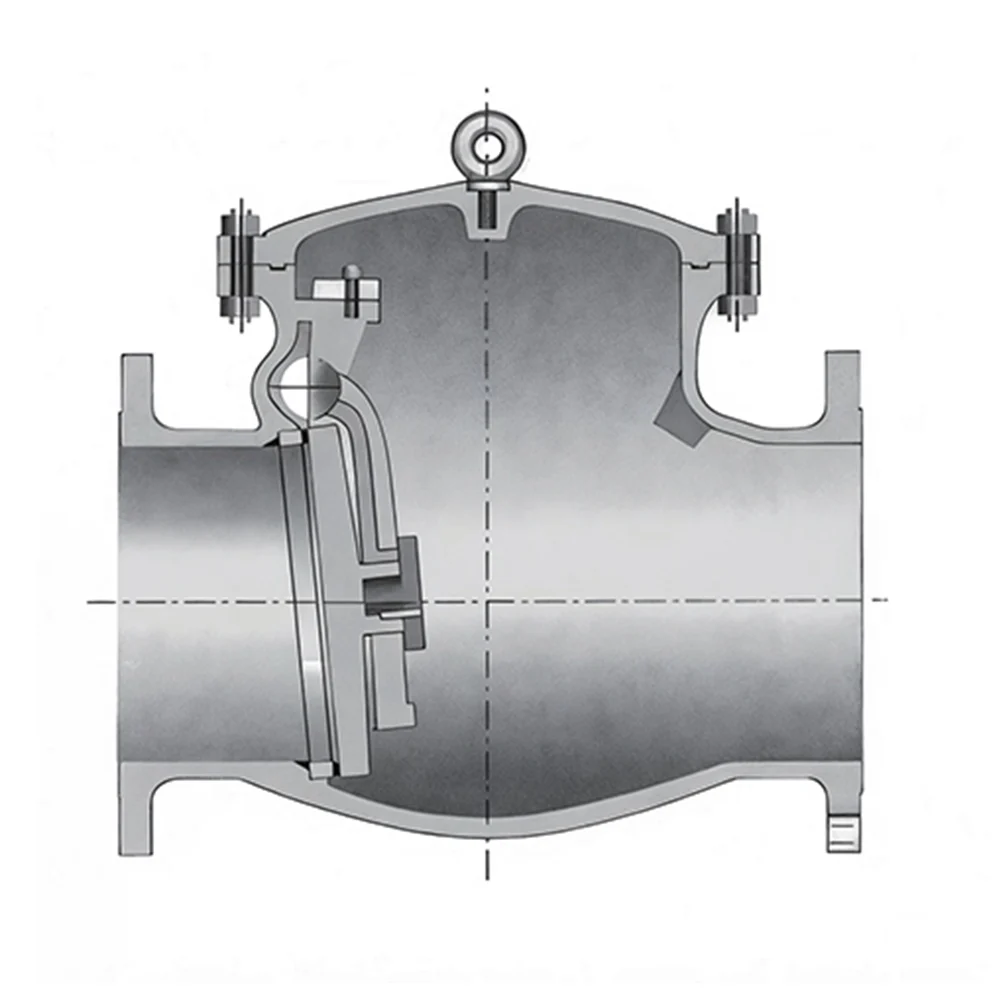

DIN Standard Cast Steel Swing Check Valve

Description

Description

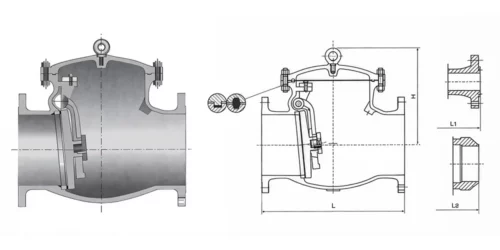

Main Dimensions and Weigh

PN16 PN25					PN40				PN64 PN100
Size	L	H	WT (PN16)	WT (PN25)	Size	L	H	WT	Size	L	H (PN64)	H (PN100)	WT (PN64)	WT (PN100)
mm	mm	mm	kg	kg	mm	mm	mm	kg	mm	mm	mm	mm	kg	kg
50	230	165	22	22	50	230	180	27	50	300	190	190	32	43
65	290	180	26	30	65	290	195	33	65	340	207	213	45	48
80	310	190	33	35	80	310	205	37	80	380	220	240	48	72
100	350	208	39	52	100	350	220	56	100	430	260	270	72	108
125	400	230	57	73	125	400	248	85	125	500	318	316	108	130
150	480	270	80	103	150	480	270	110	150	550	297	365	155	217
200	600	95	135	175	200	533	350	140	200	650	357	420	218	341
250	730	348	175	196	250	622	40	20	250	75	40	40	314	472
300	850	390	260	285	300	711	40	32	300	900	465	50	472	620
350	980	430	360	388	350	838	518	400	350	1025	514	550	627	880
400	1100	468	496	520	400	864	50	50	400	1150	56	60	882	1105
500	1250	525	588	617	500	1016	618	650
