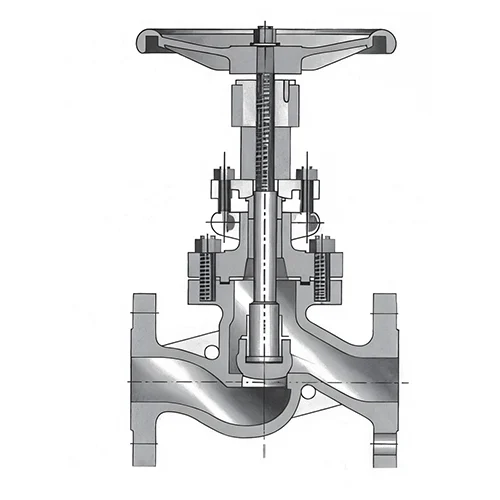

DIN Cast Steel Globe Valve

Description

Description

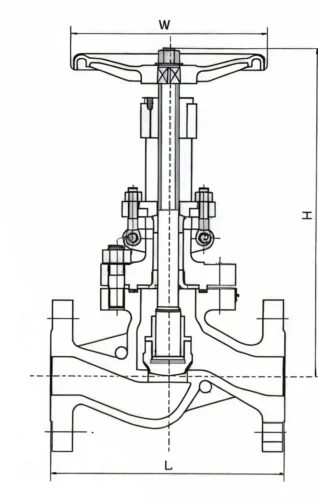

Main Size &Weight

PN16 PN25						PN40
Size	L	H	W	WT (PN16)	WT (PN25)	Size	L	H	W	WT
mm	mm	mm	mm	Kg	Kg	mm	mm	mm	mm	Kg
50	230	350	240	18	20	50	230	373	20	2
65	290	370	280	24	26	65	290	408	280	33
80	310	400	280	30	36	80	310	436	280	43
100	350	415	320	40	50	100	350	480	320	59
125	400	460	360	62	88	125	400	588	360	91
150	480	510	400	106	118	150	480	611	400	122
200	600	710	400	130	170	200	600	720	400	195
250	730	786	450	261	290
300	850	925	500	380	420

PN64 PN100
Size	L	H (PN64)	W (PN64)	H (PN100)	W (PN100)	WT (PN64)	WT (PN100)
mm	mm	mm	mm	mm	mm	Kg	Kg
50	300	410	280	425	30	35	38
65	340	450	320	465	320	52	58
80	380	485	360	485	400	63	69
100	430	537	400	548	400	84	93
125	50	631	40	645	450	150	165
150	550	646	450	650	450	210	225
200	650	813	500	820	500	313	370

Note:Larger sizes can be customized.
