DIN Cast Steel Gate Valve

DIN Cast Steel Gate Valve

DIN Cast Steel Gate Valve

Description

Description

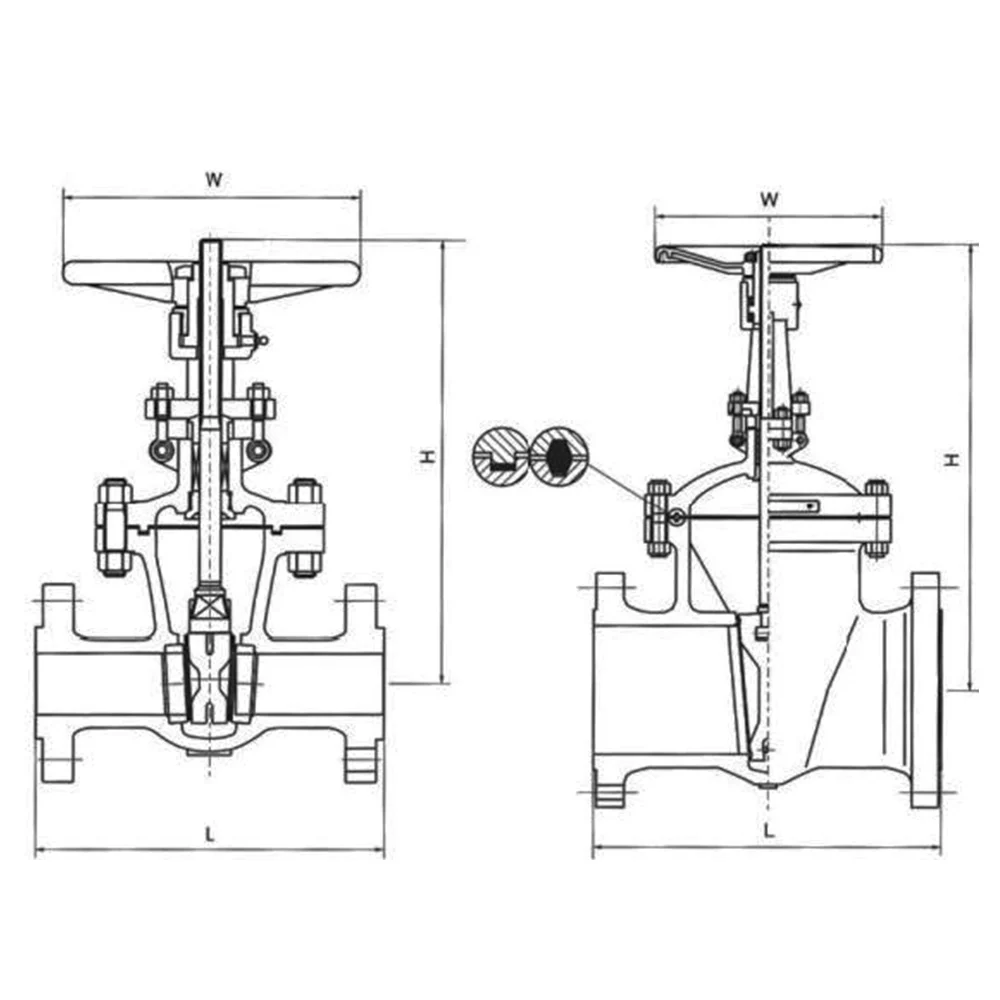

Main dimension and weight

PN16 PN25
Size	L	W	H	WT (PN16)	WT (PN25)
mm	mm	mm	mm	Kg	Kg
50	250	358	240	24	25
65	270	373	240	26	28
80	280	435	280	40	40
100	300	500	300	50	50
125	325	614	320	66	75
150	350	674	360	90	105
200	400	818	400	140	170
250	450	969	460	200	216
300	500	1145	560	280	290
350	550	1280	640	411	445
400	600	1452	640	560	685
450	650	1541	720	870	940
500	700	1676	720	1000	1200
600	800	1874	800	1200	1350
700	900	2083	800	1600	2000
800	1000	2400	920	2100	3000
900	1100	2950	920	3115	4100
1000	1200	3245	920	4200	5080

PN40
Size	L	H	W	WT
mm	mm	mm	mm	Kg
50	250	370	280	25
65	280	394	280	38
80	310	455	300	48
100	350	550	320	67
125	400	636	400	101
150	450	706	400	135
200	550	859	460	213
250	650	1016	560	375
300	750	1200	640	500
350	850	1340	640	700
400	950	1495	720	1100
450	1050	1581	800	1610
500	1150	1710	800	1880
600	1350	2035	950	3100

PN64 PN100
Size	L	H (PN64)	W (PN64)	H (PN100)	W (PN100)	WT (PN64)	WT (PN100)
mm	mm	mm	mm	mm	mm	Kg	Kg
50	250	470	280	490	360	37	50
65	280	496	320	540	400	53	62
80	310	558	320	572	400	67	80
100	350	653	350	680	400	90	100
125	400	738	400	744	560	140	160
150	450	820	400	830	560	192	220
200	550	980	460	1000	560	318	350
250	650	1050	560	1080	600	470	520
300	750	1370	640	1208	640	670	730
350	850	1450	720	1490	720	875	955
400	950	1620	800	—	—	1450	—
450	1150	2000	950	—	—	1850	—
500	1350	—	—	—	—	—	—
