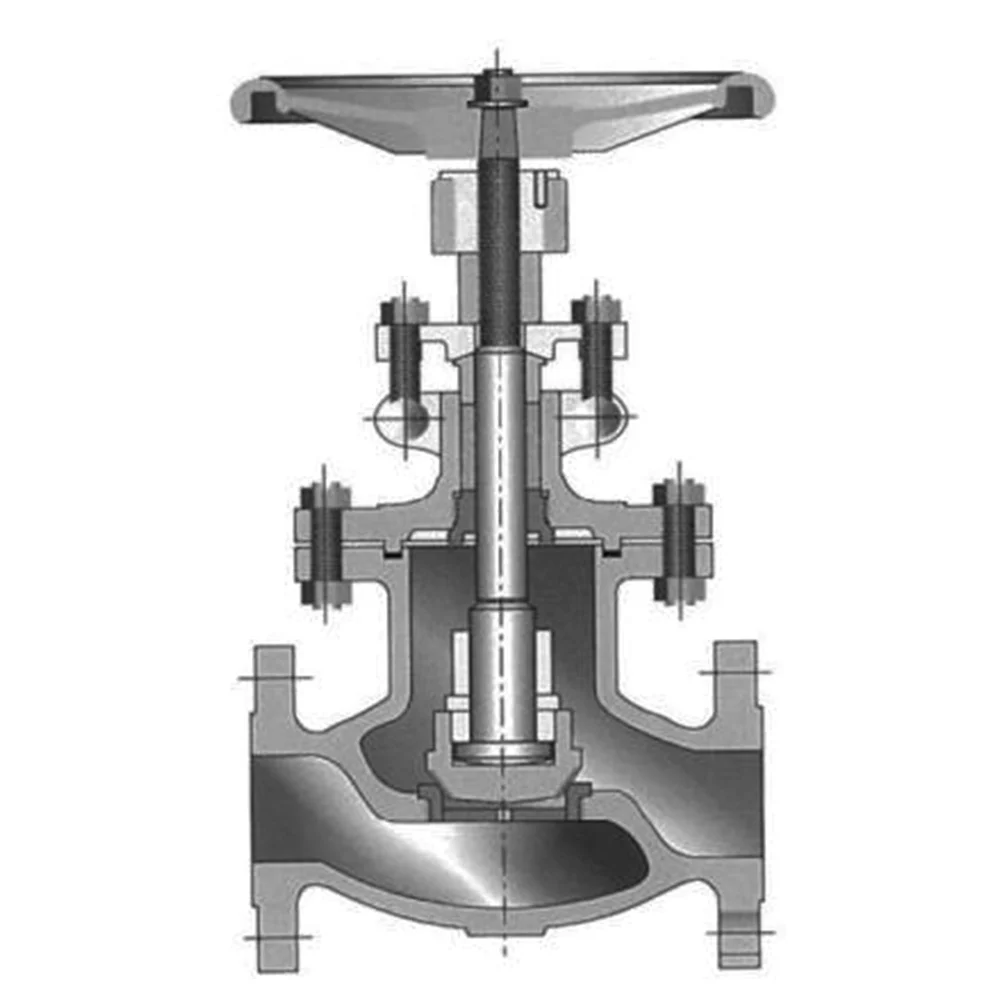

Cast Steel Globe Valve

Description

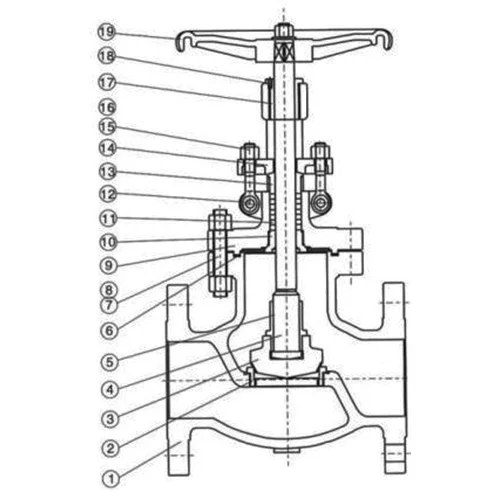

Part Name

1	Body	11	Packing
2	Seat	12	Pin
3	Disc	13	Packing Gland
4	Stem	14	Packing Plate
5	Disc Cover	15	Slipknot Screw
6	Gasket	16	Nut
7	Nut	17	Stem Nut
8	Bolt	18	Screw
9	Bonnet	19	Handwheel
10	Back Seat

ANSI Standard Pressure Testing(Body WCB)

Pressure (Class)	Back Seal test	Shell Strength Testing	High Pressure Sealing Testing	Low Pressure Sealing Testing
150	2.2	3	2.2	0.6
300	5.6	7.7	5.6
600	11.2	15.3	11.2
900	16.8	23	16.8
1500	28.1	38.3	28.1

GB Standard Pressure Testing (Body WCB)

Nominal Pressure(PN)	Back Seal test	Shell Strength Testing	High Pressure Sealing Testing	Low Pressure Sealing Testing
1.6	1.76	2.4	1.76	0.6
2.5	2.75	3.75	2.75
4	4.4	6	4.4
6.4	7.04	9.6	7.04
10	11	15	11

Main part materials

Part Name	Carbon Steel		Alloy Steel			Stainless Steel
Body	A216 WCB	A352 LCB	A217 WC6	A217WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN
Bonnet	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN
Stem	A182 F6a	A182 F304	A182 F304	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L	F51
Bolt	A193 B7	A320 L7	A193 B16	A193 B16	A193 B16	A193 B8	A193 B8M	A193 B8	A193 B8M	A193 B8M
Nut	A194 2H	A194 7	A194 7	A194 7	A194 7	A194 8	A194 8M	A194 8	A194 8M	A194 8M
Back Seat	A182 F6a	A182 F304	A182 F304	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L	F51
Packing Gland	A276 410	A276 304	A278 304	A276 304	A276 304	A276 304	A276 316	A276 304	A276 316	F51
Packing Plate	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN

Note: 1. All parts of the valve are made of materials that comply with ASTM standards;

2.The above is the VMV standard configuration. If the customer has special requirements, VMV can select

materials according to their working conditions.

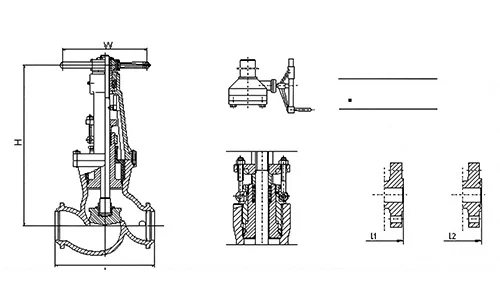

CLASS 150

Size		L	L1	L2	H	W	H1	W1	T	WT(RF)
inch	mm	mm	mm	mm	mm	mm	mm	mm	N.m	Kg
2-1/2	65	216	229	216	362	250	—	—	50	29
3	80	241	254	241	385	280	—	—	72	34
4	100	292	305	292	450	320	—	—	115	54
5	125	356	369	356	475	320	—	—	170	72
6	150	406	419	406	537	400	—	—	225	93
8	200	495	508	495	*707	*450	760	310	427	185
10	250	622	635	622	*788	*560	997	460	671	268
12	300	698	711	698	*875	*560	1047	460	1127	400
14	350	787	800	787	—	—	1400	600	1324	650
16	400	914	927	914	—	—	1698	600	1750	1113

CLASS 300

Size		L	L1	L2	H	W	H1	W1	T(RF)	WT(RF)
inch	mm	mm	mm	mm	mm	mm	mm	mm	N.m	Kg
2	50	267	283	267	345	220	—	—	52	28
2-1/2	65	292	308	292	377	250	—	—	90	36
3	80	318	334	318	405	280	—	—	137	50
4	100	356	372	356	470	320	—	—	236	75
5	125	400	416	400	620	450	—	—	390	140
6	150	444	460	444	*708	*405	836	460	556	200
8	200	559	575	559	*777	*500	814	460	1003	287
10	250	622	638	622	*935	*560	1006	460	1962	510
12	300	711	727	711	*1058	*600	1320	600	3465	720

CLASS 600

Size		L	L1	L2	H	W	H1	W1	T(RF)	WT(RF)
inch	mm	mm	mm	mm	mm	mm	mm	mm	N.m	Kg
2	50	292	295	292	*408	*280	—	—	135	32
2-1/2	65	330	333	330	*458	*320	—	—	230	45
3	80	356	359	356	*568	*350	—	—	306	62
4	100	432	435	432	*685	*450	770	460	578	139
6	150	559	562	559	*901	*560	1027	460	1427	342
8	200	660	663	660	*913	*600	1086	460	2457	483
10	250	787	790	787	*1160	*700	1380	600	4608	870
12	300	838	841	838	*1227	*760	1663	600	8420	1067

CLASS 900

Size		L	L1	L2	H	W	H1	W1	T(RF)	WT(RF)
inch	mm	mm	mm	mm	mm	mm	mm	mm	N.m	Kg
2	50	368	371	368	*535	*350	—	—	153	58
2-1/2	65	419	422	419	*630	*400	—	—	250	92
3	80	381	384	381	*675	*350	875	460	315	144
4	100	457	460	457	*780	*500	820	460	673	225
6	150	610	613	610	*936	*600	1003	460	1787	502
8	200	737	740	737	*1051	*700	1257	600	3557	720

CLASS 1500

NPS	IN	2″	2-1/2″	3″	4″	6″	8″	10″	14″
DN	MM	50	65	80	100	150	200	250	350
L-L1	IN	14.5	16.5	18.5	21.5	27.75	32.75	39	49.5
(RF-BW)	MM	368	419	470	546	705	832	991	1257
L2 (RTJ)	IN	14.62	16.62	18.62	21.62	28	33.13	3938	50.25
L2 (RTJ)	MM	371	422	473	549	711	842	1000	1276
W	IN	14	14	20	22	24	24	3938	47.25
W	MM	350	350	500	560	610	610	1000	1200
H	IN	24.4	25.2	32.9	33.7	48.4	70.9	78.78	106
H	MM	619	641	835	857	1230	1800	2000	2692
WT (FF)	KG	84	116	143	236	918	1764	2680	4300
WT(BW)	KG	58	62	128	168	781	1502	2280	3600

Company

Who We Are

Corporate Responsibility

Steam Traps Series

Mechanical

Thermodynamic

Thermostatic

Manifolds

Steam Trap Station

Condensate Recovery Pump

Others

System

Air Trap

Bellows Sealed Valves

Control Valves

GGC Valves

High Quality Valve Industry Solutions

Successfully Implemented Project Solutions

VMV Quality-first manufacturing

Equipment Part

Service Part

Customer Support

Resources

Services

Product Categories

Cast Steel Globe Valve

Cast Steel Globe Valve

Description

Main part materials

Related Products

Comprehensive Steam and Thermal Energy System Solutions Manufacturer

Company

Who We Are

Corporate Responsibility

High Quality Valve Industry Solutions

Successfully Implemented Project Solutions

VMV Quality-first manufacturing

Equipment Part

Service Part

Customer Support

Resources

Services

Product Categories

Cast Steel Globe Valve

Cast Steel Globe Valve

Description

Main part materials

Related Products

Related products

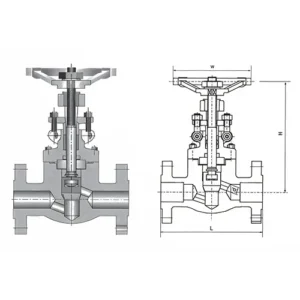

Forged Steel Globe Valve With Integral Flange

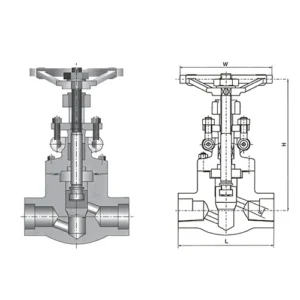

Forged Steel Threaded Socket Welded Globe Valve

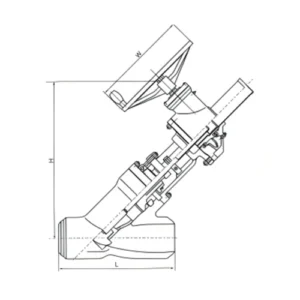

Y type Pressure Self-Sealing Globe Valve

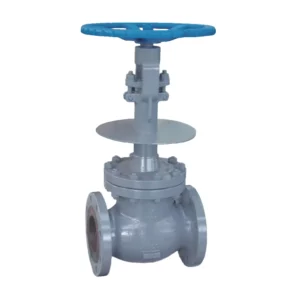

Low-temp. Globe Valve
