Steam Separator AS7

The product is a baffle type separator, which is used to separate liquid droplets contained in steam, compressed air and other gas systems. It can improve the working performance of the separator when equipped with a thermal insulation jacket.

Description

Working Principle

This product is used to separate droplets contained in steam, compressed air and other gas systems. The insulation jacketcan improve the performance ofthe separator.

Technical Standard
  • GB/T12250-2005 Steam Trap Terminology Marking Structure Length
  • GB/T22654-2008 Technical Conditions for Steam Traps
  • GB/T12251-2005 Test Method for Steam Traps
  • ISO 6948 Automatic steam traps

Production and performance characteristic tests

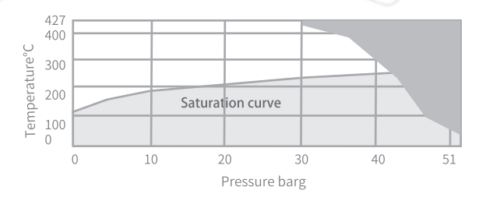

Technical Parameter
Model Connection Method Nominal Pressure DN Working Pressure RangeMPa Condition Temperature °C@ Pressure MPa
AS7 Flange 16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]
16 0.05-1.6 [email protected]

62

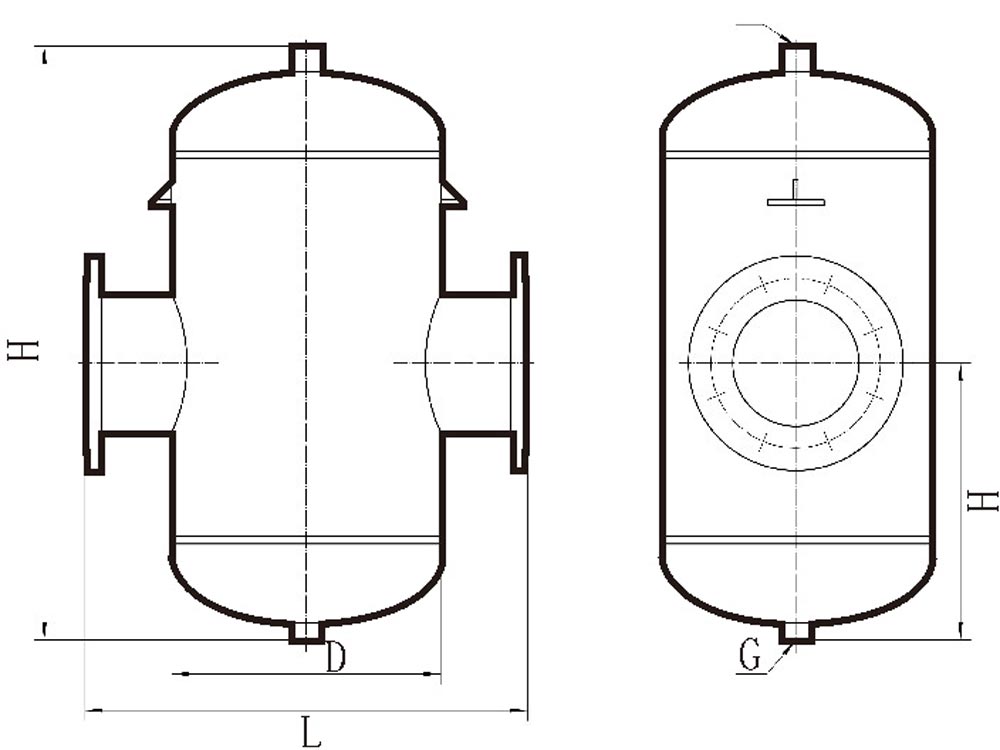

Water Separator AS7 Structure Diagram
unit (mm)

Model Nominal Size L H D E F G Weight Capacity
AS7 DN15 230 450 108 200 1/2″ 1/2″ 2.9kg 2.9L
DN20 230 450 108 200 1/2″ 1/2″ 3.5kg 3.5L
DN25 350 500 159 220 1/2″ 1/2″ 4.8kg 4.8L
DN32 350 500 159 220 1/2″ 1/2″ 6.6kg 6.6L
DN40 360 500 159 220 3/4″ 1/2″ 8.8kg 8.8L
DN50 420 638 219 252 1″   3/4″ 10.6kg 10.6L
DN65 420 638 219 252 1″   3/4″ 17.5kg 17.5L
DN80 523 735 273 332 2″   3/4″ 20.5kg 20.5L
DN100 574 795 324 337 2″   3/4″ 29kg 29L
DN125 656 843 356 310 2″   3/4″ 43kg 43L
DN150 706 935 406 347 2″   3/4″ 64kg 64L
