Air Trap AFT20A

The body and bonnet are made of cast steel/forged steel.
All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of movable parts, which improves the service life of the trap.

Air Trap AFT20A

Description

Description

Working Principle

Based on the differential density of steam and liquid.

Features

Valve body and bonnet are made of cast steel, forged steel.
All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of movable parts,which improves the service life of the steam trap.
Special flow channel design to achieve zero water hammer.
Patented flexible closing system and micron-level precision closing system double guarantee no steam leakage and long service life.
Pressure equalization pipe completely solves the air blockage.
Built-in filter makes the air trap work in a clean environment.
Choose different capacity curves according to the differential pressure, increase capacity.
Drain plug is designed at the bottom of the air trap to ensure that the internal water will be drained, to prevent floating ball from freezing damage in cold weather.

Technical Standard

ISO 6553: Automatic steam traps – Marking
ISO 6554: Automatic steam traps -Face-to-face dimensions
ISO 6948: Automatic steam traps -Production and performance
characteristic tests

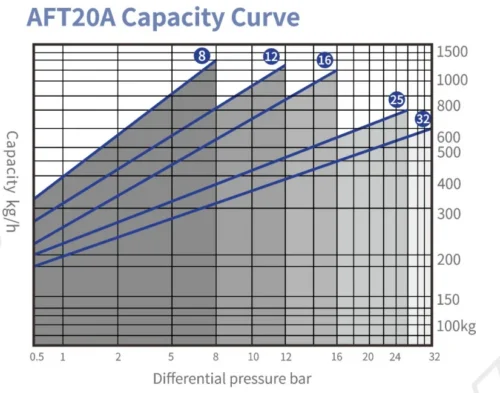

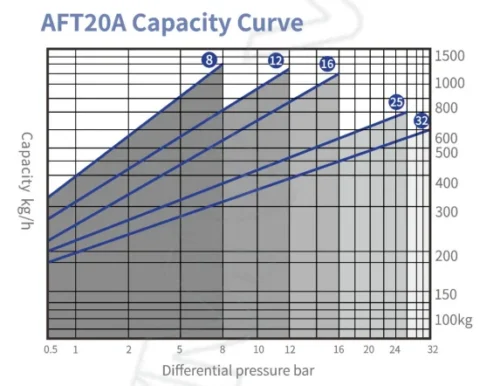

Technical Parameters

Nominal pressure	PN40
Max. allowable pressure (Shell)	3.46MPa/200°C
Max. allowable temperature (Shell)	350°C/2.92MPa
Factory steam action test	>3 times/1.6MPa
Max. operating pressure	3.2MPa
Max. operating temperature	350°C
Factory cold test pressure	6.0MPa
Air test	2.0MPa

Bonnet: A105
Body:WCB
Seat:420
Disc: 440C
Other trims:304

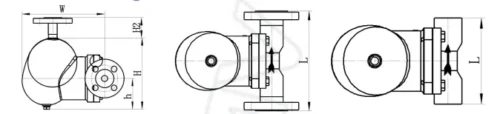

unit (mm)

Connection	Pressure	DN(IN)	L	H	h	w	H2	KG
T/W	PN16/25/40CL150/300	15(1/2″)	150	175	75	200	50	8.9
		20(3/4″)	150	175	75	200	50	9.1
		25(1″)	150	175	75	200	50	9.2
		32(11/4″)	210	175	75	200	50	10.8
		40(11/2″)	210	175	75	200	50	10.9
		50(2″)	210		175 75 200		50	11.1
F	PN16/25/40CL150/300	15(1/2″)	210	175	75	200	50	11.5
		20(3/4″)	210	175	75	200	50	11.8
		25(1″)	210	175	75	200	50	12.2
		32(11/4″)	210	175	75	200	50(Vertical Installation:100)	13.2
		40(11/2″)	210	175	75	200	50(Vertical Installation:100)	13.6
		50(2″)	210	175	75	200	50(Vertical Installation:100)	14.2
		65(21/2″)	230(Vertical Installation:320)	175	75	200	50(Vertical Installation:160)	15.1
		80(3″)	230(Vertical Installation:320)	175	75	200	50(Vertical Installation:160)	16.6
		100(4″)	230(Vertical Installation:320)	175	75	200	50(Vertical InstallationHas Interference)	18.6
