Description
Working Principle
- Based on the differential density of steam and liquid.
Features
- Valve body and bonnet are made of cast steel, forged steel.
- All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of movable parts,which improves the service life of the steam trap.
- Special flow channel design to achieve zero water hammer.
- Patented flexible closing system and micron-level precision closing system double guarantee no steam leakage and long service life.
- Pressure equalization pipe completely solves the air blockage.
- Built-in filter makes the air trap work in a clean environment.

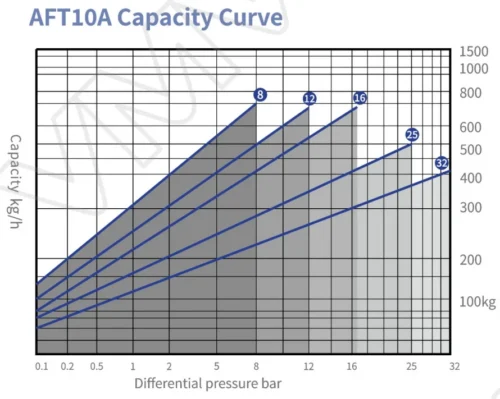

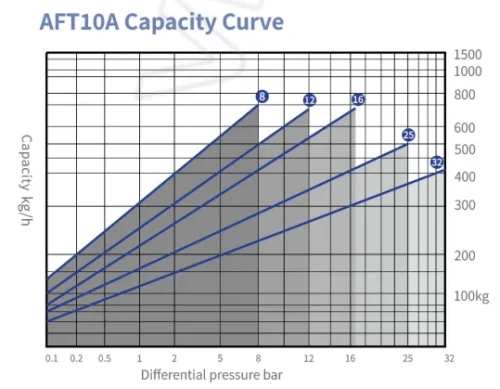

- Choose different capacity curves according to the differential pressure, increase capacity.
- Drain plug is designed at the bottom of the air trap to ensure that the internal water will be drained, to prevent floating ball from freezing damage in cold weather.
