Description
Structural Features

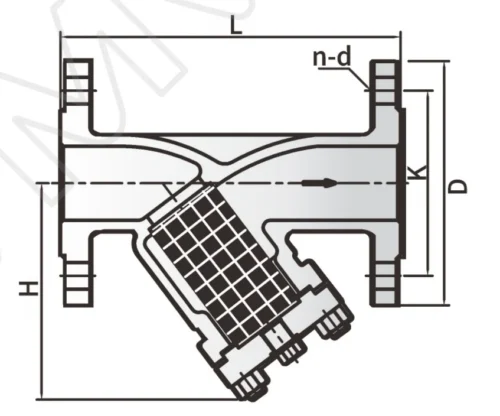

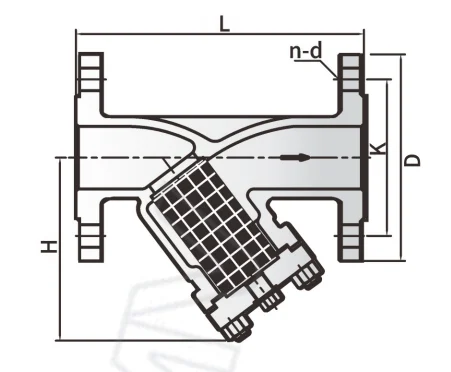

The DIN standard Ytypestrainer is a device used to eliminate particulate impurities in the medium, which can effectively protect the normal operation of valves and equipment on the pipeline.When cleaning is required, just take out the detach- able strainer screen and reload it after processing, which is extremely convenient for maintenance.WCB cast steel material, doublelayer stainless steel strainer screen, more thorough filtration of impurities and better corrosion resistance. Optional drain plug for quick maintenance.
Technical Parameter

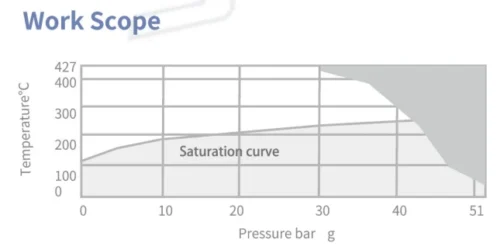

| Model | Connection Method | Nominal Pressure DN | Working Pressure Range MPa | Max ALLOWABLE Temp.℃@ Pre. MPa |
| 15 | 0.05-1.6 | [email protected] | ||
| 20 | 0.05-1.6 | [email protected] | ||
| 25 | 0.05-1.6 | [email protected] | ||
| 32 | 0.05-1.6 | [email protected] | ||
| 40 | 0.05-1.6 | [email protected] | ||
| YG45 | Flange | 50 | 0.05-1.6 | [email protected] |
| 65 | 0.05-1.6 | [email protected] | ||
| 80 | 0.05-1.6 | [email protected] | ||
| 100 | 0.05-1.6 | [email protected] | ||
| 125 | 0.05-1.6 | [email protected] | ||
| 150 | 0.05-1.6 | [email protected] |
