Description
Working Principle
- .The working principle of the bimetallic trap is to rely on the different temperature between saturated steam and condensed water
- When the set temperature is reached, the condensate is continuously drained Features
Features

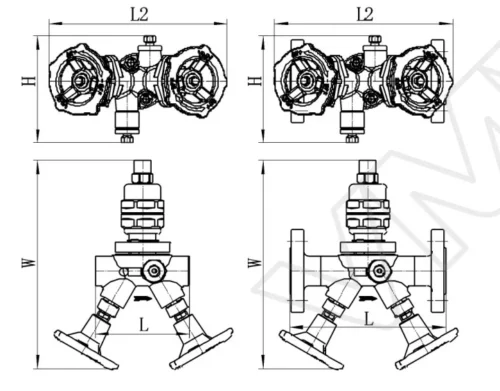

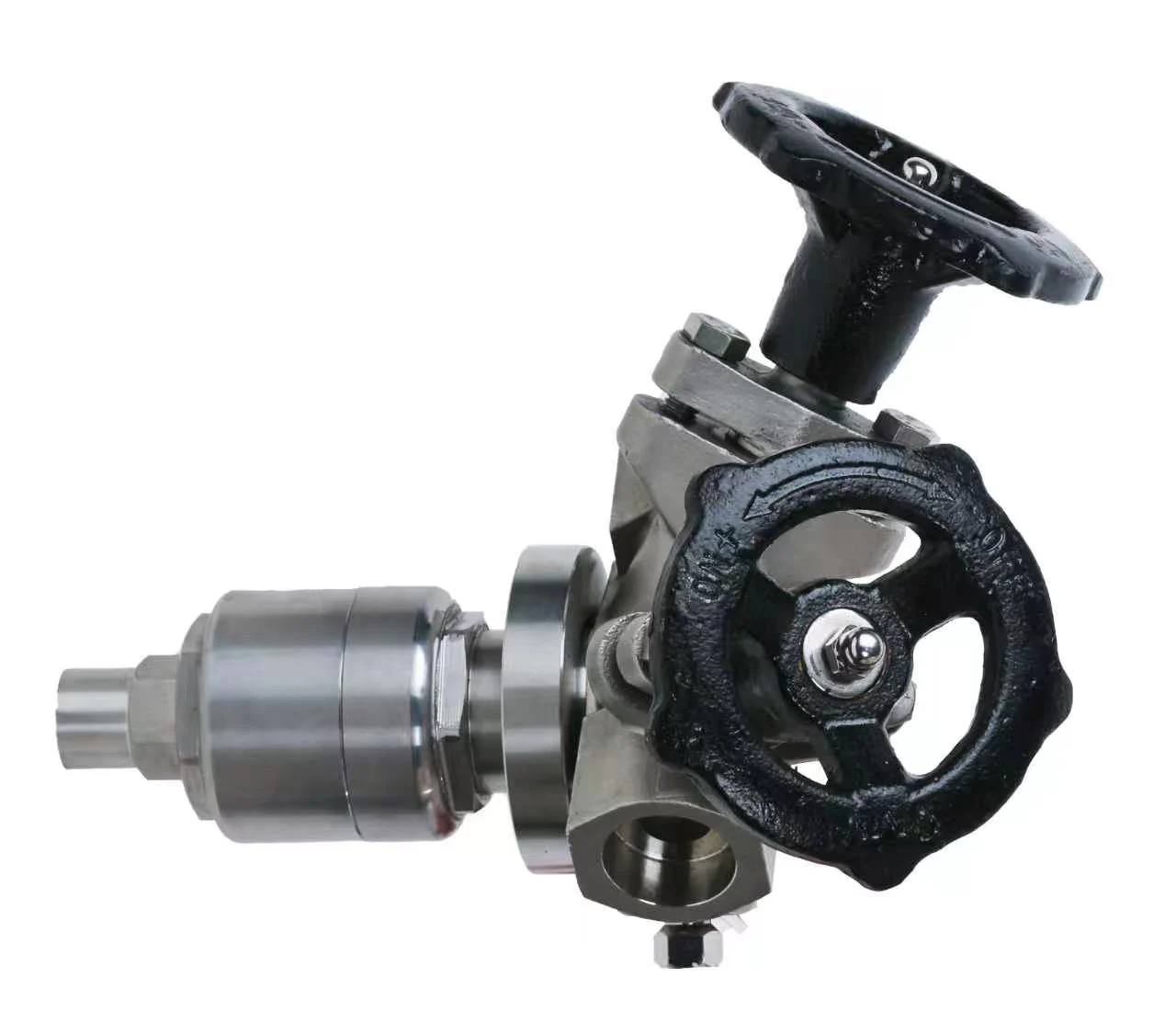

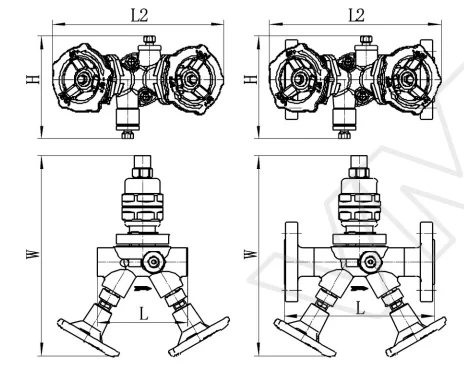

The thermostatic (bimetallic) steam trap station is a TVS station composed of stainless steel bimetallic steam traps and front and rear stainless steel valves, filters and inspection valves; the steam traps and TVS stations are made of stainless steel;Adjustable temperature bimetallic sheet makes full use of the sensible heat of high tempera- ture condensate;It is easy to replace, and there is no need to install stop valves, filters and inspection valves at the front and rear ends of the trap; the back pressure rate is as high as 50%.
