Description
VMV vacuum breaker protect your equipment from vacuum damage while helping to efficiently drain condensate from lines and containers.

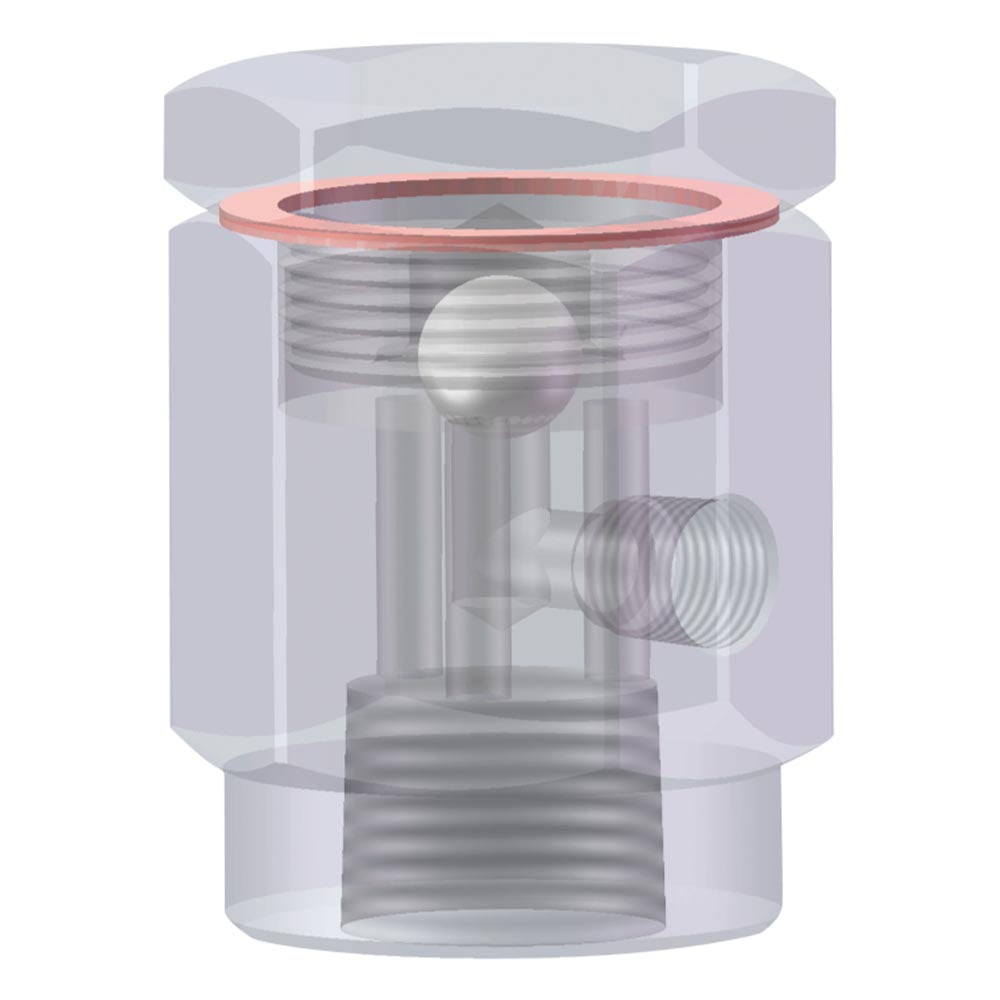

Low opening gland
Copper pad
Hexagonal body for easy installation
Hexagonal body for easy installation
Stainless steel valve
core with precision contact
Air interface
Body and bonnet available in stainless steel or brass
Working Principle
when working fine
The high and precision valve core valve seat adopts a linear seal.

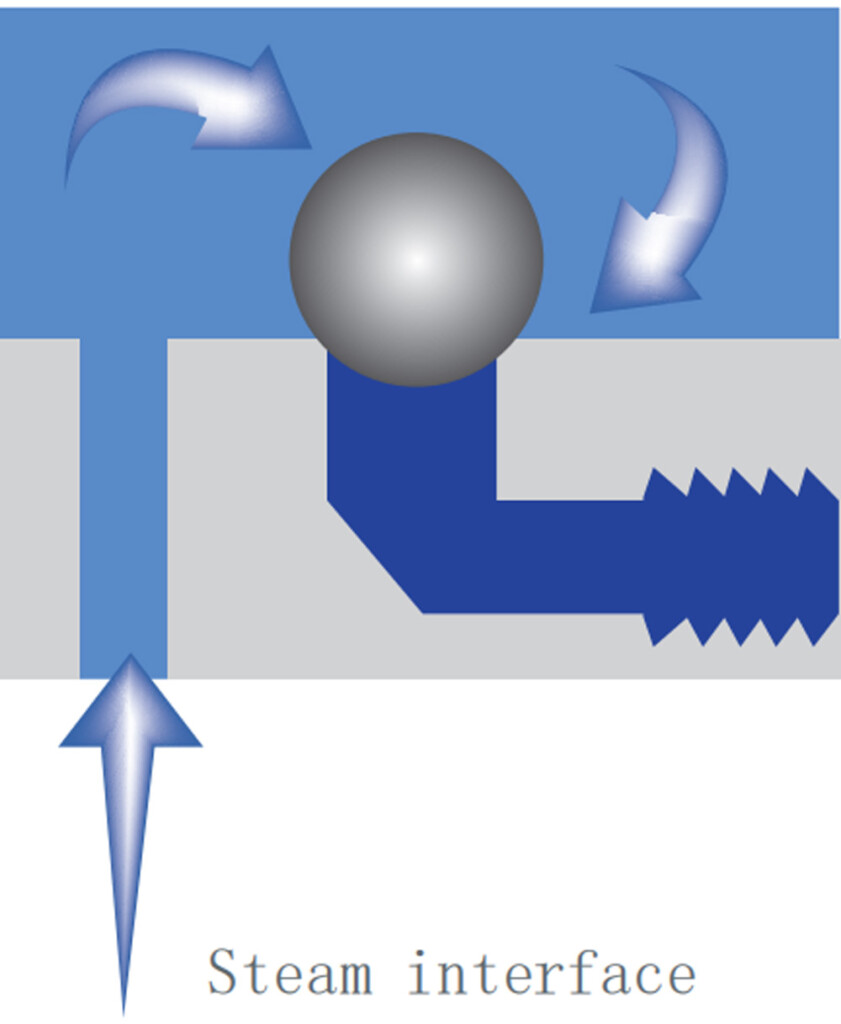

When the pipeline is under pressure, the valve seat and valve core is tightly closed, and there is no steam.

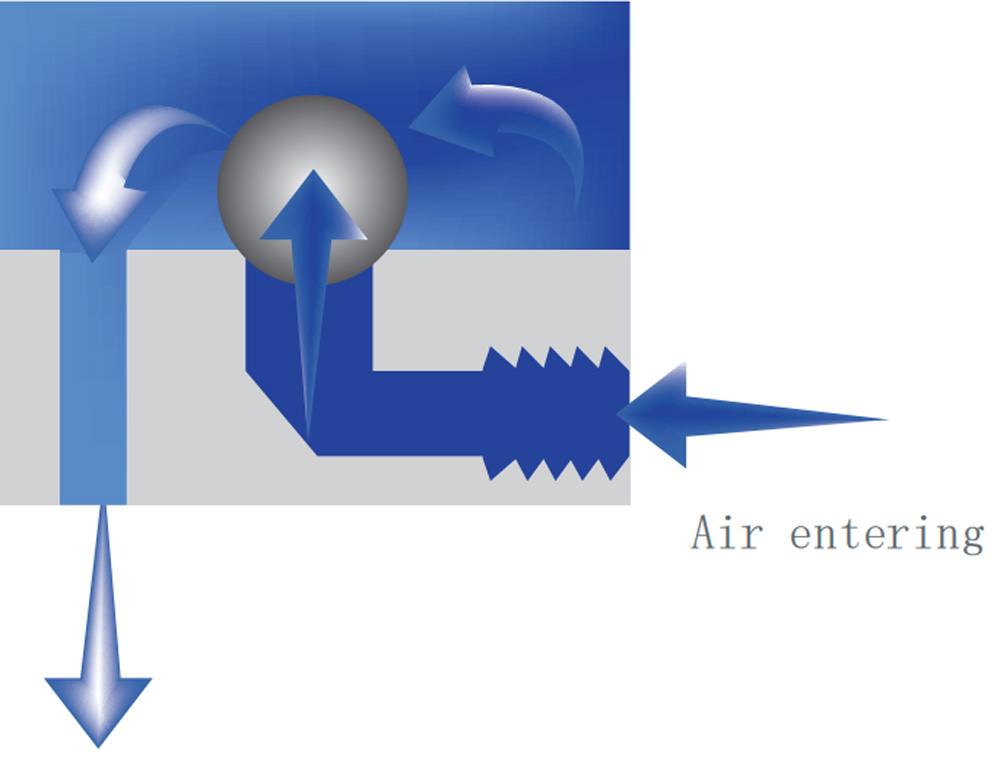

When the pressure of the steam system drops to normal pressure, the steam in the equipment cools down, and the valve core opens when a negative pressure is generated and a vacuum state occurs.

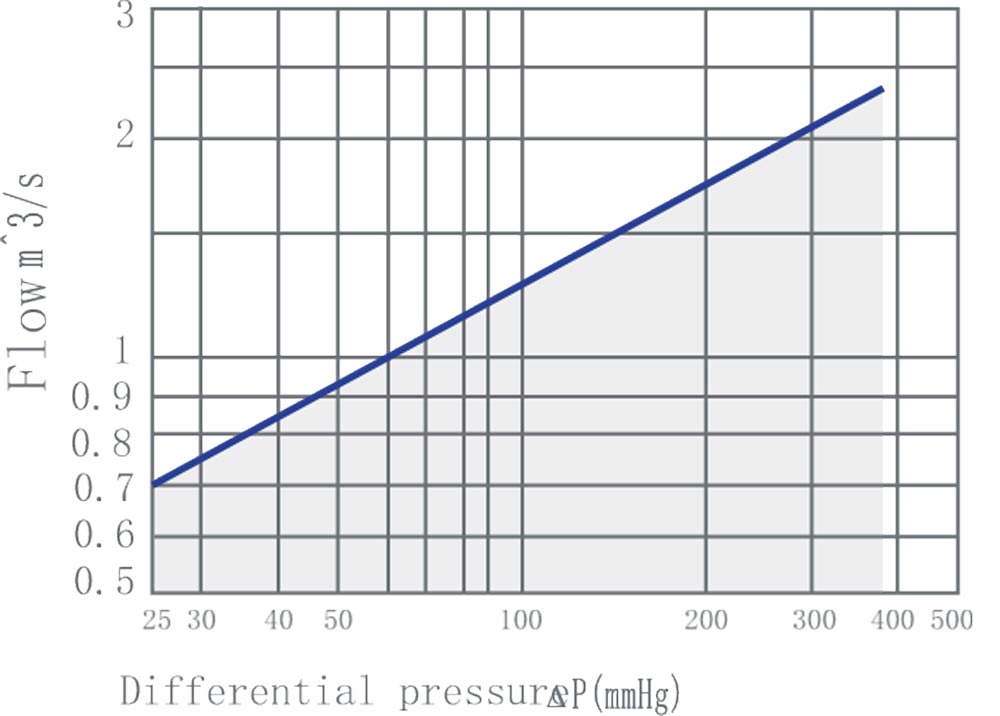

The differential pressure at which the valve opens is ４.６ｍｍＨｇ
Application
This product is robust and reliable and can be used in a variety of systems and equipment to prevent vacuum, such as:
- Heat Exchanger
- Steam Storage Tank
- Boiler
- Jacketed pot
- Sterilization room
- Steam main line
Advantage
- Protects expensive equipment from vacuum damage
- Small size and sensitive action
- Simple, robust and reliable design
- VMV’s domestic expert team technology, knowledge and service guarantee
