DIN STANDARD GLAND PACKING GLOBE VALVE
DIN STANDARD GLAND PACKING GLOBE VALVE Data Dimension

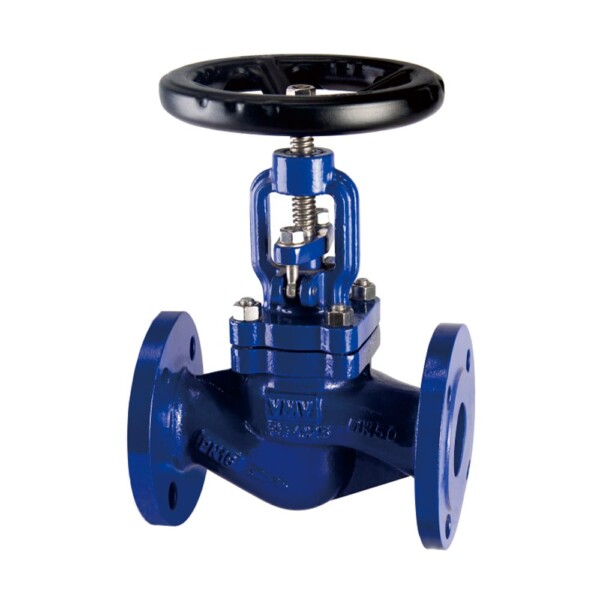

DIN Standard Gland Packing Globe Valve

  • German coated sand casting technology,casting surface smoothness reaches 12.5-25 microns.
  • Conical disc design. Benefit from the cone and streamline shape design, the disc can removethe impurity, keep valve in reliable seal and longer service life.
Get A Quote

DIN Standard Gland Packing Globe Valve

  • 2024 年 7 月 27 日

Description

Product Advantage

  • German coated sand casting technology,casting surface smoothness reaches 12.5-25 microns.
  • Conical disc design. Benefit from the cone and streamline shape design, the disc can removethe impurity, keep valve in reliable seal and longer service life.
  • Treated by quenching and tempering and surface nitriding, the stems have good performance of anti-corrosion and anti-friction.
  • Various valve discdesigns can be provided according to working conditions, such as throttle valve disc, regulating valve disc, flat soft sealing valve disc, globe check valve disc, etc.

Specifications

Design standard: EN12516
Face to face dimension: EN558
Flange ends: EN1092-1
Test & inspection: EN12266

Application

Thermal oil,Steam,Hot and cold water,Chemical industry etc.



Advantages of VMV Bellows

  • The test items of bellows sealed valves meet the requirements of different working conditions
  • For the following general tests, VMV products have been tested in accordance with the specificat ions at the factory
  • Users can make special tests and other tests according to the actual working condions

Quality Control

  • VMV Standard bellows materials: SS304/SS316L
  • Special bellows materials:Inconel 625/Hastelloy 276/Monel allo y etc.
  • VMV can help customers choose suitable bellows for differen working condions.

Data Dimension Table

DN PN16 PN25 PN40
L W H≈ L W H≈ L W H≈
15 130 Φ140 195 130 Φ140 195 130 Φ140 195
20 150 Φ140 195 150 Φ140 195 150 Φ140 195
25 160 Φ160 211 160 Φ160 211 160 Φ160 211
32 180 Φ160 211 180 Φ160 211 180 Φ160 211
40 200 Φ180 252 200 Φ180 252 200 Φ180 252
50 230 Φ200 254 230 Φ200 254 230 Φ200 254
65 290 Φ220 287 290 Φ220 287 290 Φ220 287
80 310 Φ250 310 310 Φ250 310 310 Φ250 310
100 350 Φ300 365 350 Φ300 365 350 Φ300 365
125 400 Φ350 433 400 Φ350 433 400 Φ350 433
150 480 Φ400 465 480 Φ400 465 480 Φ400 465
200 600 Φ450 550 600 Φ450 550 600 Φ450 550
250 730 Φ550 775 730 Φ550 775 730 Φ550 775
300 850 Φ600 850 850 Φ600 850 850 Φ600 850
350 980 Φ700 1005 980 Φ700 1005 980 Φ700 1005
400 1100 Φ700 1140 1100 Φ700 1140 1100 Φ700 1140
