Centralize all steam distribution valves
Standardized and integrated skid-mount-
ed combination
Reduce construction time and cost for
on-site installation
Configure VMV bellows globe valve and
steam trap
Built-in bellows globe valve ensures zero
leakage at packing
Spherical line sealing structure of valve
core improves sealing performance
Bottom configuration steam trap Remove condensed water
Optional customized steel base and frame
Manifolds on both sides for optimal
installation sequencing
Easy on site installation

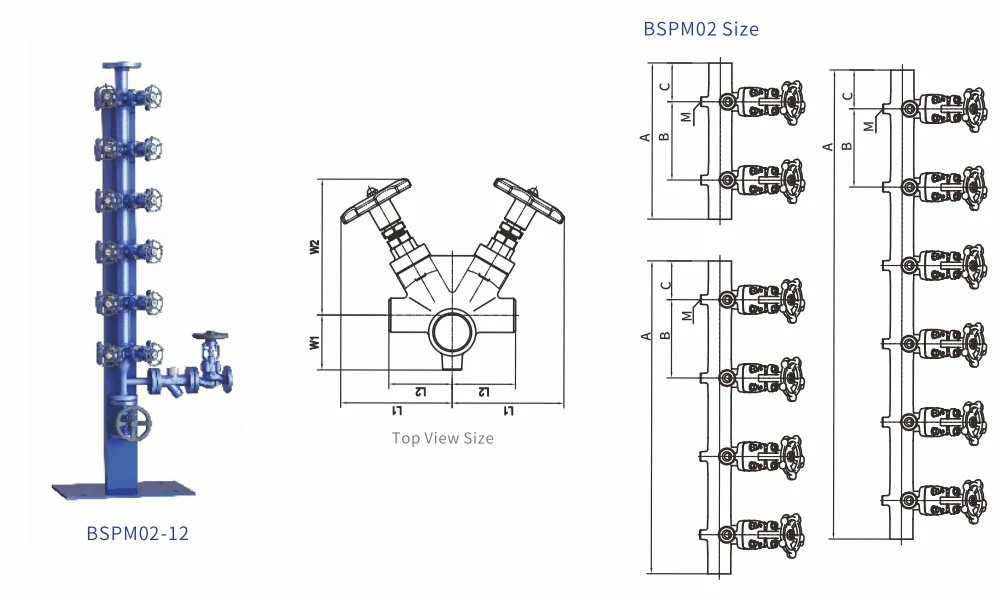

| Product | Interface | Director | Manifold | Shape Size | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | QTY | Size | Size | A | B | C | L1 | L2 | W1 | W2 | M | KG |
| BSPM02-4 | 4 | 40 | 15/20 | 340 | 170 | 85 | 135 | 75 | 168 | 58 | M12 | 10.5 |
| BSPM02-6 | 6 | 40 | 15/20 | 510 | 170 | 85 | 135 | 75 | 168 | 58 | M12 | 15.8 |
| BSPM02-8 | 8 | 40 | 15/20 | 680 | 170 | 85 | 135 | 75 | 168 | 58 | M12 | 21.2 |
| BSPM02-10 | 10 | 40 | 15/20 | 850 | 170 | 85 | 135 | 75 | 168 | 58 | M12 | 26.5 |
| BSPM02-12 | 12 | 40 | 15/20 | 1020 | 170 | 85 | 135 | 75 | 168 | 58 | M12 | 31.8 |
