① Ergonomic hand wheel design

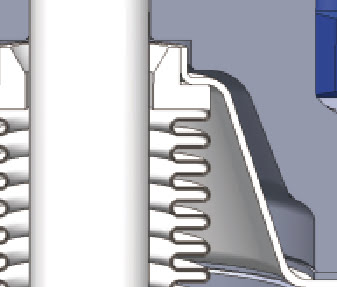

② Bellows transion connecon
Improve welding quality

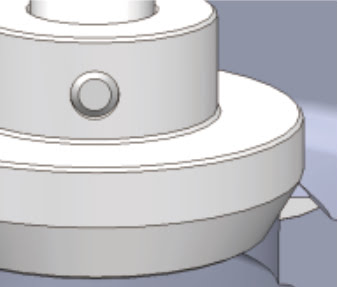

③ Conical disc or other customized
disc
④ Double seal
design(bellows+packing)

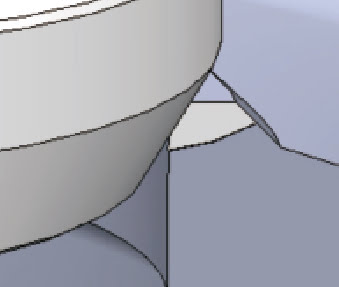

⑤ Sealing surface overlay welding
alloy layer
Roughness ≤0.5um

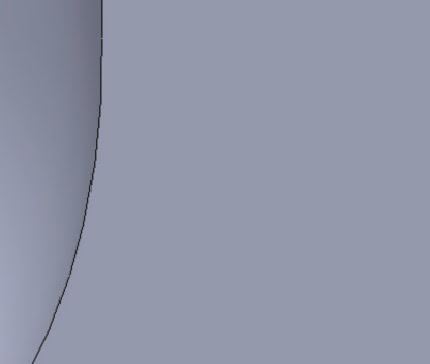

⑥ German coated sand casting
Surface finish:
12.5~25 microns

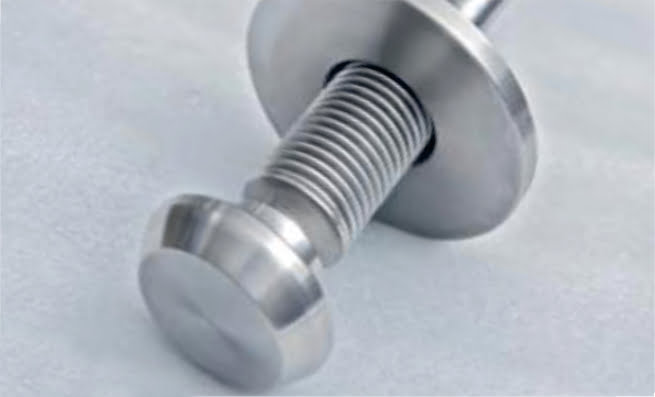

Conical seal:The sealing surface has self-cleaning function and is not easy to adhere to impurities, which can achieve linear sealing.

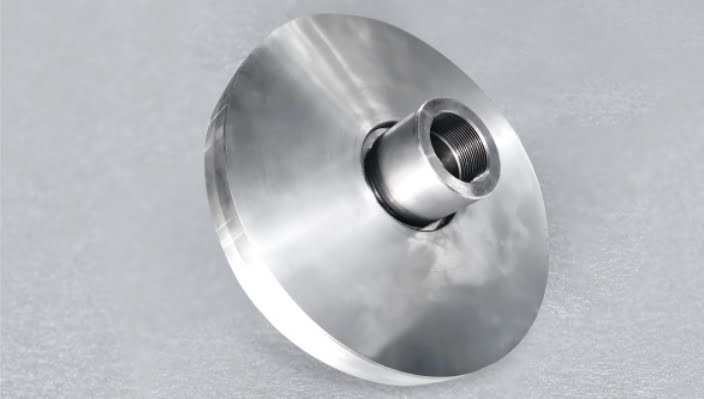

Balanced disc seal:Small disc relieves pressure and drives large disc to open easily.

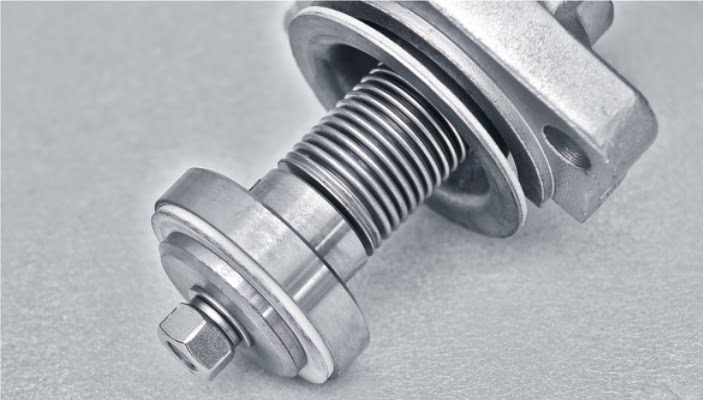

Flat soft seal:The surface of the soft seal can prevent the sparks when opening and closing,it's suitable for gas media and corrosion resistance conditions.
| Name | Material |
| Body | Gs-C25,JS1049,CF8,CF8M,CF3M |
| Seat | 13Cr,SS304,SS316,Stellite |
| Disc | 13Cr,F304,F316,Stellite |
| Bellows | SS304,SS316L |
| Stem | 20Cr13,F304,F316 |
| Bonnet | GS-C25，JS1049，CF8,CF8M,CF3M |
| Nominal Pressure | PN(MPA) | |
| Test Pressure | Shell Test | 1.5 x Pr |
| Sealing Test | 1.1 x Pr | |
| Air Test | 0.6 | |
| Bellows Assembly Test | 1.5 x Pr | |
| Suitable Temp | -196℃~600℃ | |
| Note: Pr is the pressure rating of the material at room temperature, the unit is MPa | ||

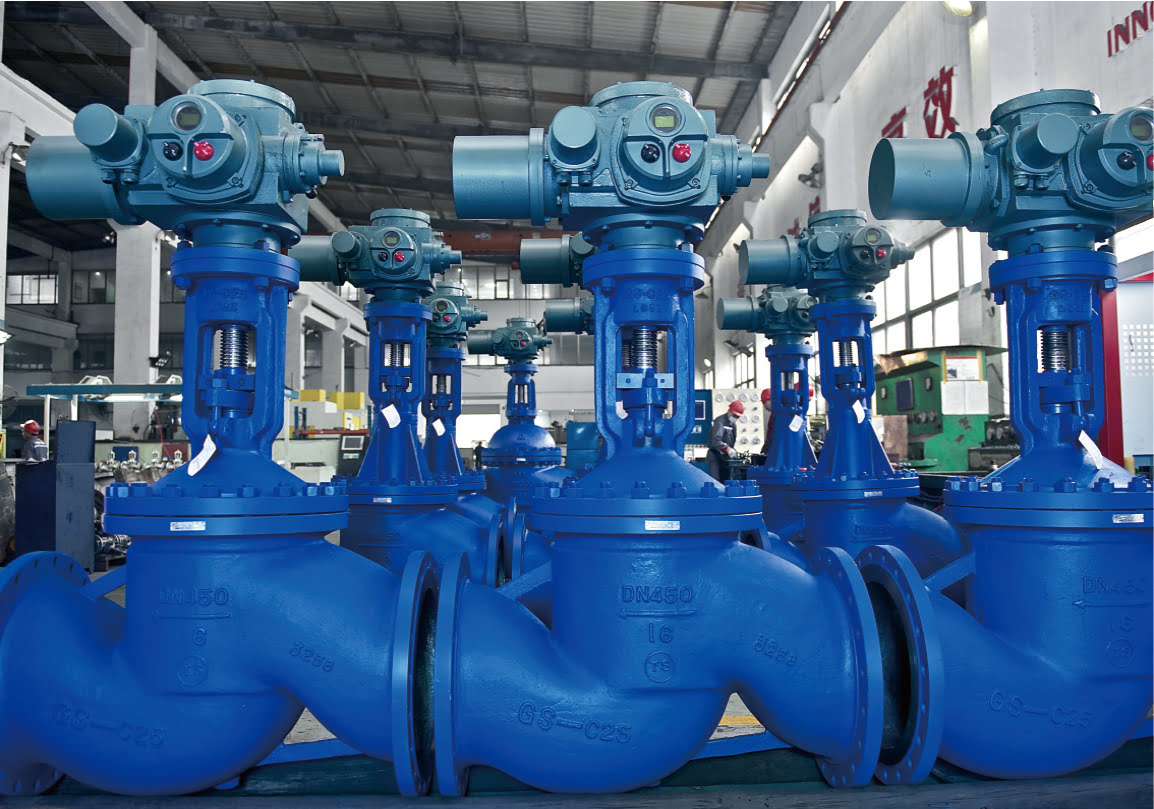

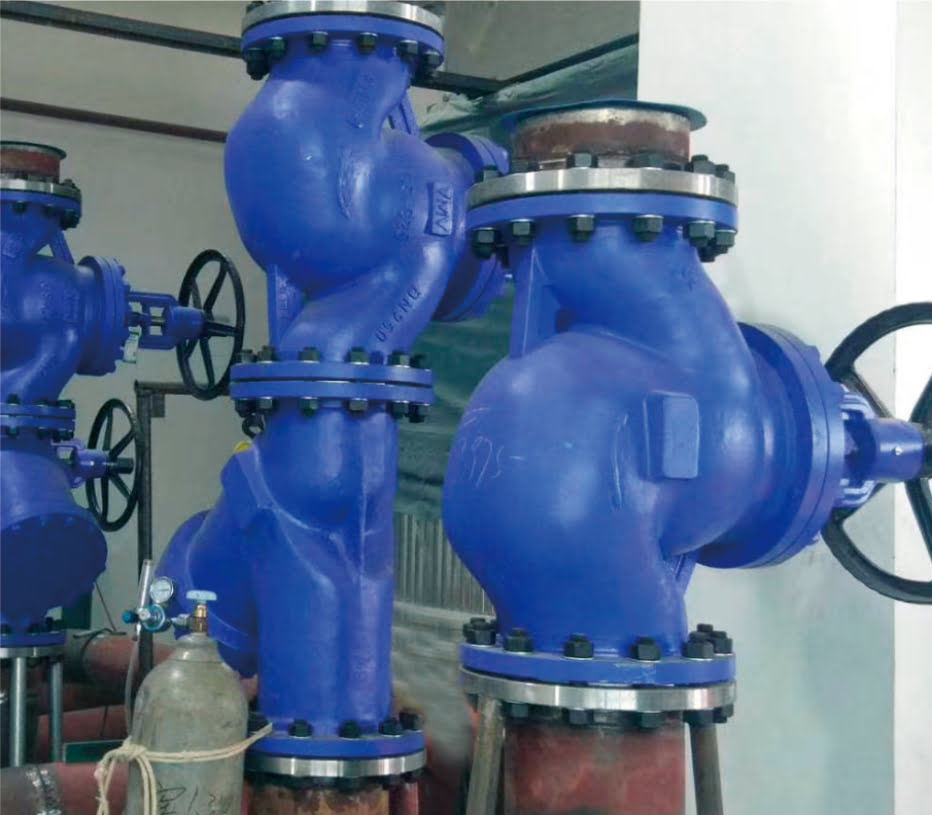

According to the performance of the medium, temperature, pressure, flow rate, and other characteristics combined with the process, operation, safety and other factors, we can select the corresponding valve specifications.
