Description
CLASS 150~600

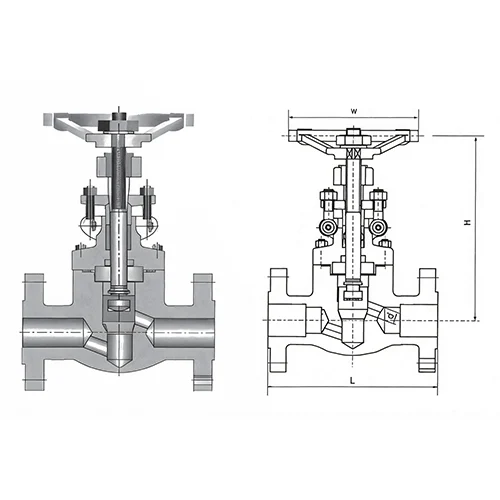

| Size | Pressure | L | L1 | H Open(mm) | W(mm) | WT(Kg) | ||||
| inch | mm | LB | (mm) | (mm) | Reduced Bore | Full Bore | Reduced Bore | Full Bore | Reduced Bore | Full Bore |
| 1/2 | 15 | 150 | 108 | 108 | 158 | 163 | 100 | 100 | 4.5 | 6.9 |
| 300 | 152 | 152 | 4.8 | 7.7 | ||||||
| 600 | 165 | 165 | 5.6 | 7.8 | ||||||
| 3/4 | 20 | 150 | 117 | 117 | 163 | 193 | 100 | 125 | 6.9 | 9.8 |
| 300 | 178 | 178 | 7.7 | 11.3 | ||||||
| 600 | 190 | 190 | 7.8 | 12.5 | ||||||
| 1 | 25 | 150 | 127 | 127 | 193 | 250 | 125 | 160 | 9.8 | 13.5 |
| 300 | 203 | 203 | 11.1 | 16.8 | ||||||
| 600 | 216 | 216 | 12.5 | 17.5 | ||||||
| 1-1/4 | 32 | 150 | 140 | 140 | 250 | 250 | 160 | 160 | 13.5 | 19.5 |
| 300 | 216 | 216 | 16.8 | 21.2 | ||||||
| 600 | 229 | 229 | 17 | 23.5 | ||||||
| 1-1/2 | 40 | 150 | 165 | 165 | 250 | 291 | 160 | 180 | 19.5 | 28.5 |
| 300 | 229 | 229 | 21.2 | 32.6 | ||||||
| 600 | 241 | 241 | 23.5 | 38.5 | ||||||
| 2 | 50 | 150 | 203 | 203 | 291 | 312 | 180 | 200 | 28 | 30.3 |
| 300 | 267 | 267 | 32.6 | 35 | ||||||
| 600 | 292 | 292 | 38.8 | 42.2 | ||||||
